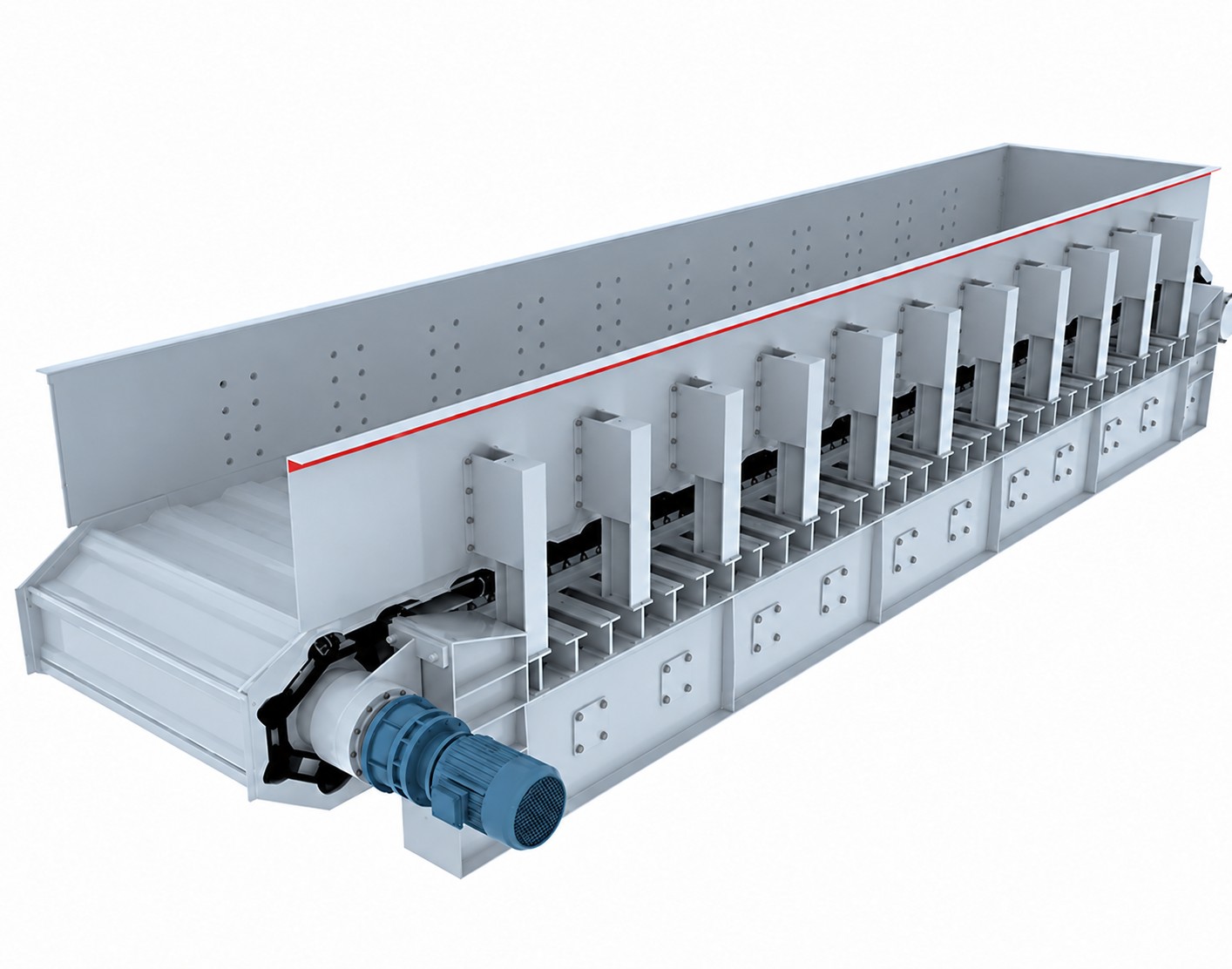

plate feeder
- Product Introduction: A feeder equipment used for short-distance conveying.
- Capacity: 15~400m3/h
- Applications: It is widely used in crushing and grading workshops of large mineral processing plants and cement. In building materials and other departments, it is used as a silo to continuously and evenly feed materials to the primary crusher. It can also be used to transport materials with larger particle size and specific gravity over short distances. Transportation and other machinery can feed materials evenly and continuously. It can be installed horizontally or tilted, and its upward inclination angle is 20°.
- Product Improvements: It can be divided into three types: heavy-duty apron feeder, medium-sized apron feeder and light-duty apron feeder. Reasonable apron feeder equipment can be equipped according to user needs.
Advantages and Features
- It can be installed horizontally or tilted, with an inclination angle of 12°
- in order to avoid the material hitting the feeder directly, the silo is required not to be empty
- the feeding granularity can reach 1000mm.

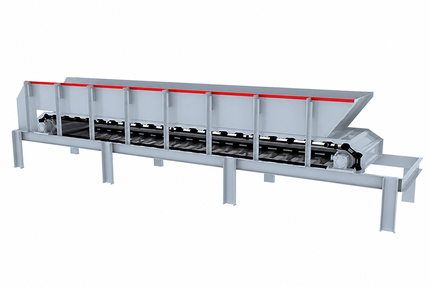

Working Principle
The main job of the feeder is to pass the power of the motor through the reducer to make the connecting rod of the eccentric mechanism reciprocate, and to make the pawl push the ratchet to drive the driving sprocket to rotate, thereby supporting the chain plate to move intermittently to achieve the purpose of conveying materials. Heavy-duty apron feeder: suitable for short-distance conveying of block materials with particle size below 1000mm. Medium-sized plate feeder: suitable for short-distance transportation of block materials with a particle size of less than 400mm, transporting bulk materials with a bulk density of less than 2400kg/m3, a block weight of less than 500kg, and a temperature of less than 400°C. Light plate feeder: suitable for short-distance transportation of block materials with a particle size of less than 160mm, transporting bulk materials with a bulk density of less than 1200kg/m3, a block weight of less than 140kg, and a temperature of less than 350°C.
Technical Specifications
| Model | chain plate | Feeding particle size (mm) | Production capacity (m3/h) | electric motor | Overall dimensions (length × width × height) (mm) | Weight(kg) | |||
| width | Sprocket center distance (mm) | Speed(m/s) | Model | Power(KW) | |||||
| GBZ120-4.5 | 1200 | 4500 | 0.05 | ≤500 | 100 | Y160L-4 | 15 | 6983×5228×2080 | 31279 |
| GBZ120-5 | 1200 | 5000 | 0.05 | ≤500 | 100 | Y160L-4 | 15 | 7593×5228×2080 | 33427 |
| GBZ120-5.6 | 1200 | 5600 | 0.05 | ≤500 | 100 | Y160L-4 | 15 | 8183×5228×2080 | 34321 |
| GBZ120-6 | 1200 | 6000 | 0.05 | ≤500 | 100 | Y160L-4 | 15 | 8638×5228×2080 | 35900 |
| GBZ120-8 | 1200 | 8000 | 0.05 | ≤500 | 100 | Y180L-4 | 22 | 10533×5293×2080 | 41342 |
| GBZ120-8.7 | 1200 | 8700 | 0.05 | ≤500 | 100 | Y180L-4 | 22 | 11383×5293×2080 | 43164 |
| GBZ120 10 | 1200 | 10000 | 0.05 | ≤500 | 100 | Y180L-4 | 22 | 12583×5293×2080 | 46962 |
| GBZ120-12 | 1200 | 12000 | 0.05 | ≤500 | 100 | Y180L-4 | 22 | 14653×5293×2080 | 51844 |
| GBZ120-15 | 1200 | 15000 | 0.05 | ≤500 | 100 | Y200L-4 | 30 | 17658×5518×2080 | 62157 |
| GBZ150-4 | 1500 | 4000 | 0.05 | ≤ 600 | 150 | Y160L-4 | 15 | 6613×5528×2080 | 33197 |
| GBZ150-6 | 1500 | 6000 | 0.05 | ≤ 600 | 150 | Y180L-4 | 22 | 8638×5593×2080 | 39257 |
| GBZ150-7 | 1500 | 7000 | 0.05 | ≤ 600 | 150 | Y180L-4 | 22 | 9633×5593×2080 | 43352 |
| GBZ150-8 | 1500 | 8000 | 0.05 | ≤ 600 | 150 | Y180L-4 | 22 | 10533×5593×2080 | 45962 |
| GBZ150-9 | 1500 | 9000 | 0.05 | ≤ 600 | 150 | Y200L-4 | 30 | 11683×5668×2080 | 50522 |
| GBZ150-12 | 1500 | 12000 | 0.05 | ≤ 600 | 150 | Y225M-4 | 45 | 14653×5888×2080 | 59915 |
| GBZ180-6 | 1800 | 6000 | 0.05 | ≤800 | 240 | Y225M-4 | 45 | 8651×6463×2080 | 46840 |
| GBZ180-8 | 1800 | 8000 | 0.05 | ≤800 | 240 | Y225M-4 | 45 | 10533×6188×2080 | 51360 |
| GBZ180-9.5 | 1800 | 9500 | 0.05 | ≤800 | 240 | Y225M-4 | 45 | 12033×6183×2080 | 57397 |
| GBZ180-10 | 1800 | 10000 | 0.05 | ≤800 | 240 | Y225M-4 | 45 | 12593×6188×2080 | 59632 |
| GBZ180-12 | 1800 | 12000 | 0.05 | ≤800 | 240 | Y225M-4 | 45 | 14653×6363.5×2080 | 66029 |
| GBZ240-4 | 2400 | 4000 | 0.05 | ≤1000 | 400 | Y200L-4 | 30 | 6613×6718×2080 | 44780 |
| GBZ240-5 | 2400 | 5000 | 0.05 | ≤1000 | 400 | Y200L-4 | 30 | 7533×6718×2080 | 50737 |
| GBZ240-5.6 | 2400 | 5600 | 0.05 | ≤1000 | 400 | Y200L-4 | 30 | 8133×6718×2080 | 52447 |
| GBZ240-10 | 2400 | 10000 | 0.05 | ≤1000 | 400 | Y225M-4 | 45 | 12593×6718×2080 | 76373 |
| GBZ240-12 | 2400 | 12000 | 0.05 | ≤1000 | 400 | Y225M-4 | 45 | 14653×6718×2080 | 85331 |
| Model | chain plate | Feeding particle size (mm) | Production capacity (m3/h) | electric motor | Overall dimensions (length × width × height) (mm) | Weight(kg) | |||
| width | Sprocket center distance (mm) | Speed(m/s) | Model | Power(KW) | |||||
| GBH80-2.2 | 800 | 2200 | 0.01-0.053 | ≤300 | 15-91 | Y123M-4 | 7.5 | 3840x2850x1185 | 3722 |
| GBH80-3 | 800 | 3000 | 0.01-0.053 | ≤300 | 15-91 | xWED106-385-4 | 4 | 4868x2705x1060 | 4014 |
| GBH80-4 | 800 | 4000 | 0.01-0.053 | ≤300 | 15-91 | Y123M-4 | 7.5 | 5640x2986x1185 | 5087 |
| GBH80-5.8 | 800 | 5800 | 0.18 | ≤300 | 15-91 | xWED7.5-8215A-213 | 7.5 | 7760×2823.5×1321 | 6526.7 |
| GBH100-1.6 | 1000 | 1600 | ≤0.15 | ≤350 | 22~131 | Y160M-6 | 7.5 | 3240x3026x1235 | 3561 |
| GBH100-3 | 1000 | 3000 | ≤0.15 | ≤350 | 22~131 | Y160M-6 | 7.5 | 4640x3114x1235 | 4548 |
| GBH100-4 | 1000 | 4000 | 0.01-0.053 | ≤350 | 22-131 | xWED106-385-4 | 4 | 5648x2890x1160 | 5086 |
| GBH120-1.8 | 1200 | 1800 | ≤0.15 | 300-400 | 35-217 | Y160M-6 | 7.5 | 3440x3314x1235 | 3965 |
| GBH120-2.2 | 1200 | 2200 | ≤0.15 | 300-400 | 35-217 | Y160M-6 | 7.5 | 3840x3314x1285 | 4238 |
| GBH120-2.6 | 1200 | 2600 | ≤0.15 | 300-400 | 35-217 | Y160M-6 | 7.5 | 4240x3314x1285 | 4572 |
| GBH120-3 | 1200 | 3000 | ≤0.15 | 300-400 | 35-217 | xWED7.5-8215A-213 | 7.5 | 4960x3150x1434 | 5075 (without reducer) |
| GBH120-4 | 1200 | 4000 | ≤0.15 | 300-400 | 35-217 | Y160M-6 | 7.5 | 5640 x 3402.5×1285 | 6100 |
| GBH120-4.5 | 1200 | 4500 | ≤0.15 | 300-400 | 35-217 | xWED7.5-8215A-213 | 7.5 | 6460x3150x1434 | 6350.6 (excluding reducer) |
| GBH120-6 | 1200 | 6000 | ≤0.15 | 300-400 | 35-217 | xWED11-8225B-213 | 11 | 7960x3242x1434 | 8210 |
| Model | chain plate | Feeding particle size (mm) | Production capacity (m3/h) | electric motor | Overall dimensions (length × width × height) (mm) | Weight(kg) | |||
| width | Sprocket center distance (mm) | Speed(m/s) | Model | Power(KW) | |||||
| GBQ50-6 | 500 | 6000 | 0.16 | 160 | 60 | Y160M-6 | 7.5 | 7476x2745x980 | 3894 |
| 08050-9.5 | 500 | 9500 | 0.16 | 160 | 60 | Y160M-6 | 7.5 | 10976x2720x980 | 5048 |
| 08050-12 | 500 | 12000 | 0.1 | 160 | 41 | Y160M-6 | 7.5 | 14276x2790x980 | 6103 |
| 08050-14 | 500 | 14000 | 0.16 | 160 | 60 | Y160L-6 | 11 | 15476x2826x980 | 7315 |
| GBQ80-6 | 800 | 6000 | 0.16 | 160 | 107 | Y160M-6 | 7.5 | 7476x3045x980 | 4274 |
| 60080-10 | 800 | 10000 | 0.16 | 160 | 107 | Y160M-6 | 7.5 | 11476x3045x980 | 5832 |
| GBQ80-12 | 800 | 12000 | 0.16 | 160 | 107 | Y160L-11 | 11 | 13476x3126x980 | 6556 |
Case Study
Changsha No. 1 Copper Mine Concentrator and Huston Mining signed an overall service project for the concentrator. Among them, the apron feeder equipment is selected as two GBZ180-12 heavy-duty apron feeders. As the feeding equipment of the crusher, the average processing capacity is 240m3/h, and the feeding particle size is about 800mm. This type of apron feeder has large processing capacity, high efficiency, and stable ore feeding. This processing plant is also an old customer who chose Huston for the second time.
