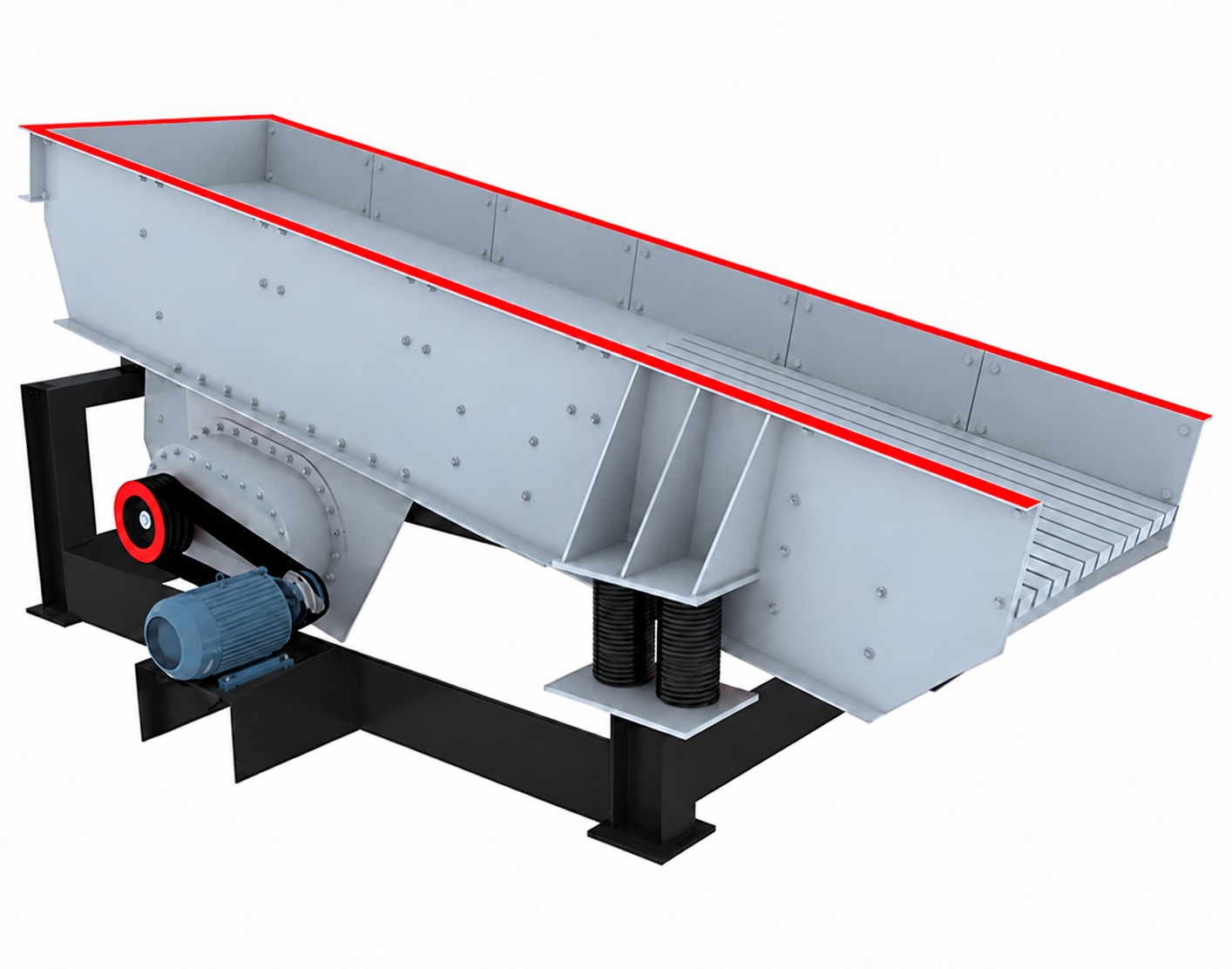

ZSW vibrating feeder
- Product Introduction: A mechanical vibration feeding equipment with coarse screening function.
- Capacity: 96~560t/h
- Applications: It is mainly used to continuously and evenly feed materials to conveyors, bucket elevators, crushers, ball mills and other equipment, and is used in automatic control systems to realize the automation of the production process.
- Product Improvements: 1. The bottom plate of the feed trough adopts the form of “blind plate + bar screen”, which can pre-screen out small pieces of materials in the feed. 2. Double eccentric shaft vibrator
Advantages and Features
The vibrating feeder has the advantages of simple structure, easy installation, stable vibration, reliable operation, long life, easy maintenance and repair, easy to realize automatic control, etc. It adopts a biaxial vibrator to vibrate linearly and complete the screening process while feeding, which improves the utilization rate of the equipment and reduces the cost. It can continuously and evenly feed the coarse crusher and coarsely screen the materials at the same time. It can optionally be equipped with a variable frequency speed motor to adjust the frequency to change the output, which facilitates control of the feed amount and does not require frequent starting of the motor.
Working Principle

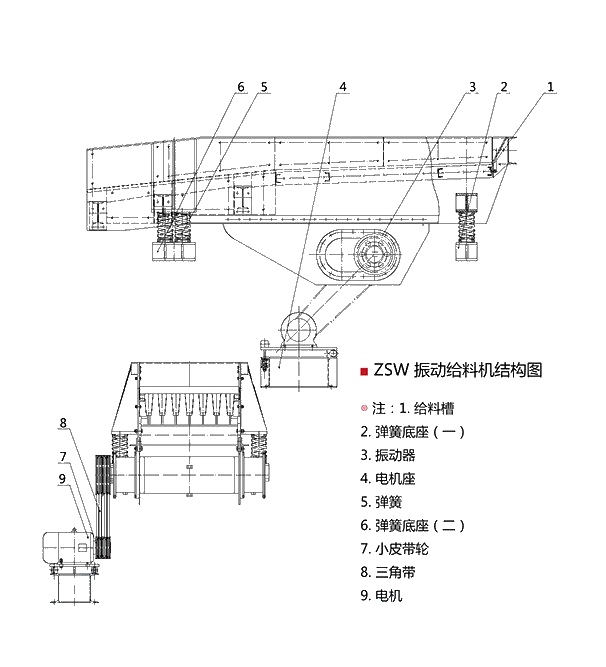

The exciter of the vibrating feeder is composed of two eccentric shafts at specific positions meshed with gears. During assembly, the two gears must be meshed according to the marks. The two eccentric shafts are driven by the motor to rotate, thereby generating a huge synthetic linear excitation force, which forces the body to vibrate on the support spring. The material uses this vibration as power to slide and throw on the trough, thereby moving the material forward to achieve the purpose of feeding. When the materials pass through the screen bars on the tank body, smaller materials can fall through the gaps between the screen bars without going through the next crushing process, thus achieving a screening effect.
Technical Specifications
| Model | Feed trough size (mm) | Feeding particle size (mm) | Feeding capacity (t/h) | Eccentric shaft speed (r/min) | Motor power(kw) | Weight(kg) |
|---|---|---|---|---|---|---|
| ZSW-380×95 | 3800×950 | 500 | 96-160 | 800 | 11 | 4082 |
| ZSW-420×110 | 4200×1100 | 580 | 120-240 | 800 | 15 | 4149 |
| ZSW-490×960 | 4900×960 | 500 | 120-240 | 800 | 15 | 5351 |
| ZSW-490×110 | 4900×1100 | 630 | 120-280 | 800 | 15 | 5352 |
| ZSW-590×110 | 5900×1100 | 630 | 350-500 | 800 | 22 | 6130 |
| ZSW-600×130 | 6000×1300 | 750 | 400-560 | 800 | 7800 |
Case Study
A chemical factory in Guizhou wants to purchase two vibrating feeders from Huston. Huston took into account the particular requirements of the industry for equipment and the relatively high pH requirements of the materials. Therefore, Huston improved the ZSW vibrating feeder and used alloy steel plates to make the trough to ensure that materials with severe wear and tear at high temperatures and corrosive materials are not affected in any way during transportation. This type of feeder has strong working capacity. It can work for 10 hours a day and transport about 10,000t of ore materials. It is very efficient and is favored by customers.
