SKU:
XH-YPGL
Category: Feeding Equipment

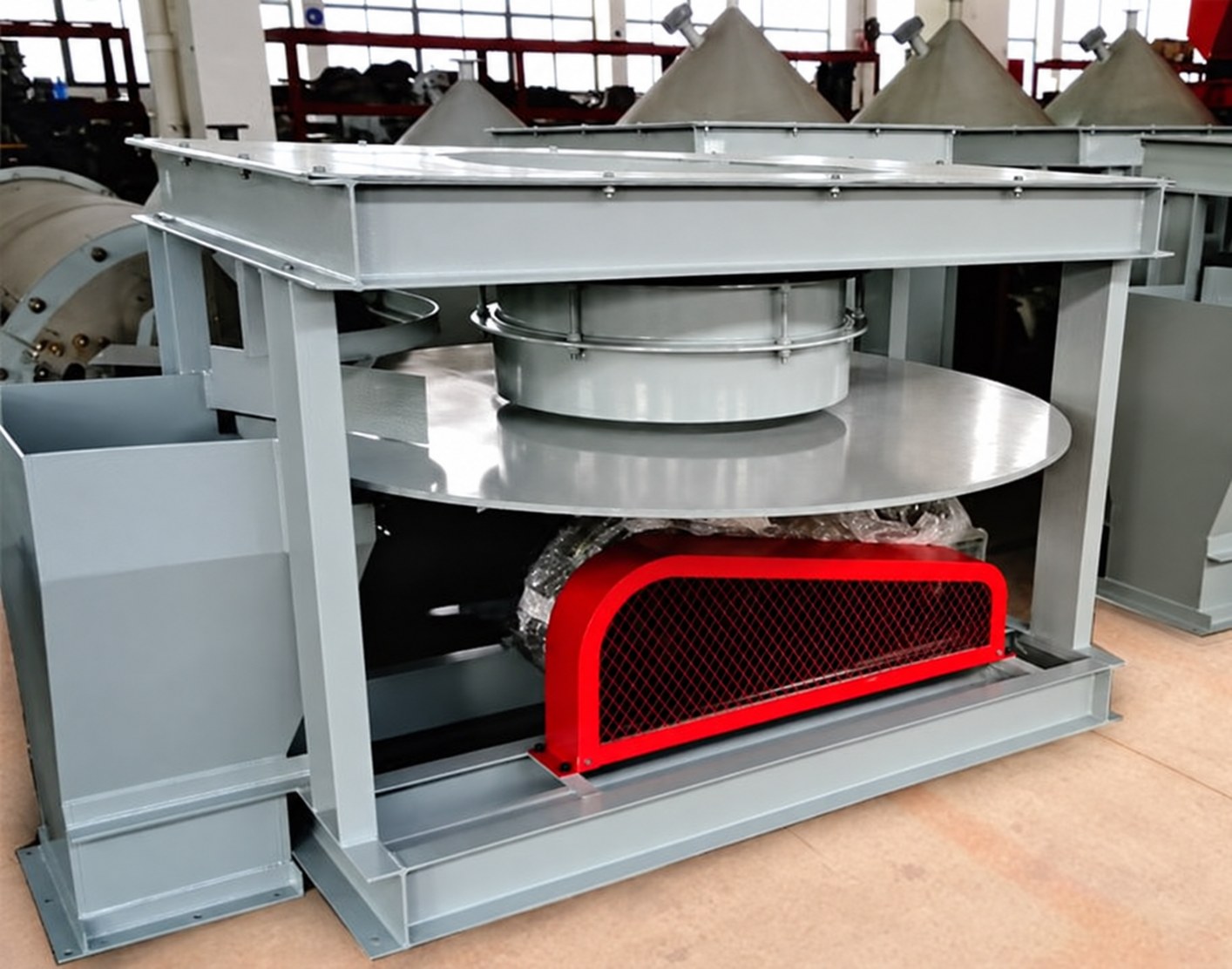

Disc feeder
- Product Introduction: A traditional continuous feeding equipment for powdery materials.
- Capacity: 0~88.4t/h
- Applications: The disc feeder is suitable for feeding various non-viscous materials, but is not suitable for powdery materials with good fluidity. It is suitable for hanging on steel structural components and installed under the hopper for continuous feeding in departments such as mineral processing plants, smelting plants, cement plants, sand mines, and mechanized casting workshops.
- Product Improvements: The speed-regulating motor can be configured according to user requirements, and the ore feeding amount can be adjusted by adjusting the disk speed.
Advantages and Features
- The disc feeder is stable, simple and easy to operate
- has a wide range of applications, is energy-saving and efficient
- has a large bearing capacity and operates smoothly
- it has the advantages of simple structure, uniform feeding, and reliable use. If the distance between the adjustment sleeve and the disc is changed, the feeding amount can be adjusted.

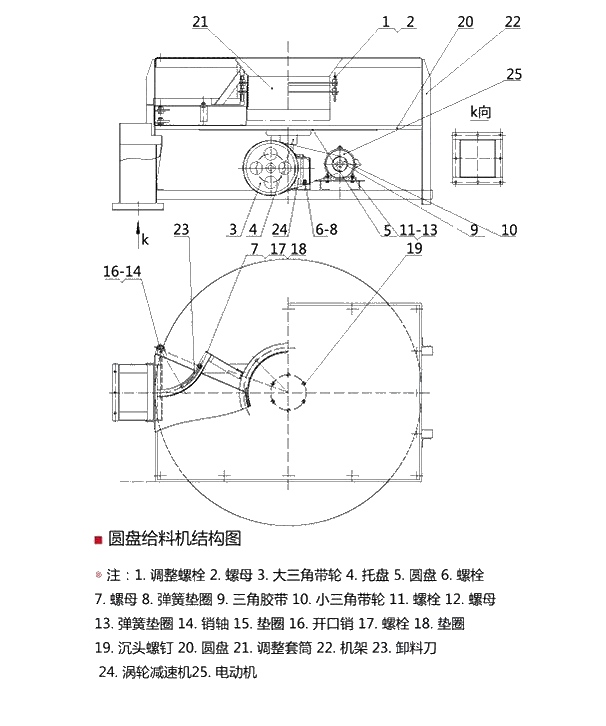

Working Principle
Bulk materials are loaded from the hopper into the receiving barrel. The materials are not exposed to the barrel wall and are accumulated on the disc by their own weight. Use the adjusting bolt to adjust the gap between the sleeve and the disc to control the natural stacking angle of the materials on the disc. When the disc rotates, the material is scraped evenly by the discharge knife on the disc to the outside of the disc and falls. In this way, as the disc rotates, the material is evenly scraped into the hopper by the discharge knife. The continuous operation of the disc completes the uniform feeding operation. Adjusting the gap between the discharge knife and the disc can also control the amount of feed. When working, the motor drives the disc mounted on the worm reducer to rotate through the pulley.
Technical Specifications
| Type | Model | Disk diameter(mm) | Disc rotation speed (r/min) | Feeding particle size (mm) | Feeding capacity (t/h) | Motor model | Motor power (kW) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| YG300 | 300 | 10. 0 | 20 | 0 〜1. 8 | Y80L- 4 | 0. 55 | 115 | |
| YG400 | 400 | 10. 7 | 0 〜2. 6 | 120 | ||||
| YG500 | 500 | 20 | 0 〜3. 3 | Y90L- 6 | 1. 1 | 124 | ||
| closed | YG600 | 600 | 10. 0 | 0 〜5. 0 | 130 | |||
| Hanging type | YG800 | 800 | 9 | 30 | 0 〜8. 0 | Y80L- 4 | 0.55 | 195 |
| YG1000 | 1000 | 9 | 30 | 0〜12 | Y90L- 4 | 1. 5 | 263 | |
| YG1500 | 1500 | 7 | 40 | 0〜22 | Y132M2-6 | 5. 5 | 755 | |
| YG2000 | 2000 | 5 | 50 | 0〜80 | Y160L-6 | 11 | 2517 | |
| DK600 | 600 | 7. 53 | 25 | 1. 8〜3. 9 | Y90L- 6 | 1. 1 | 410 | |
| DK800 | 800 | 7. 53 | 30 | 3. 5 〜7. 6 | 600 | |||
| Open hanging type | DK1000 | 1000 | 7. 50 | 40 | 1.8〜16.7 | Y100L- 6 | 1. 5 | 725 |
| DK1300 | 1300 | 6. 5 | 50 | 4. 3 〜27. 9 | Y132S- 6 | 3 | 846 | |
| DK1600 | 1600 | 6 | 60 | 7.03 〜48.6 | Y132M1- 6 | 4 | 1980 | |
| DK1800 | 1800 | 5 | 70 | 9.26 〜60 | Y132M2- 6 | 5.5 | 3070 | |
| DK2000 | 2000 | 80 | 13.6 〜88.4 | Y132M2- 6 | 3260 |

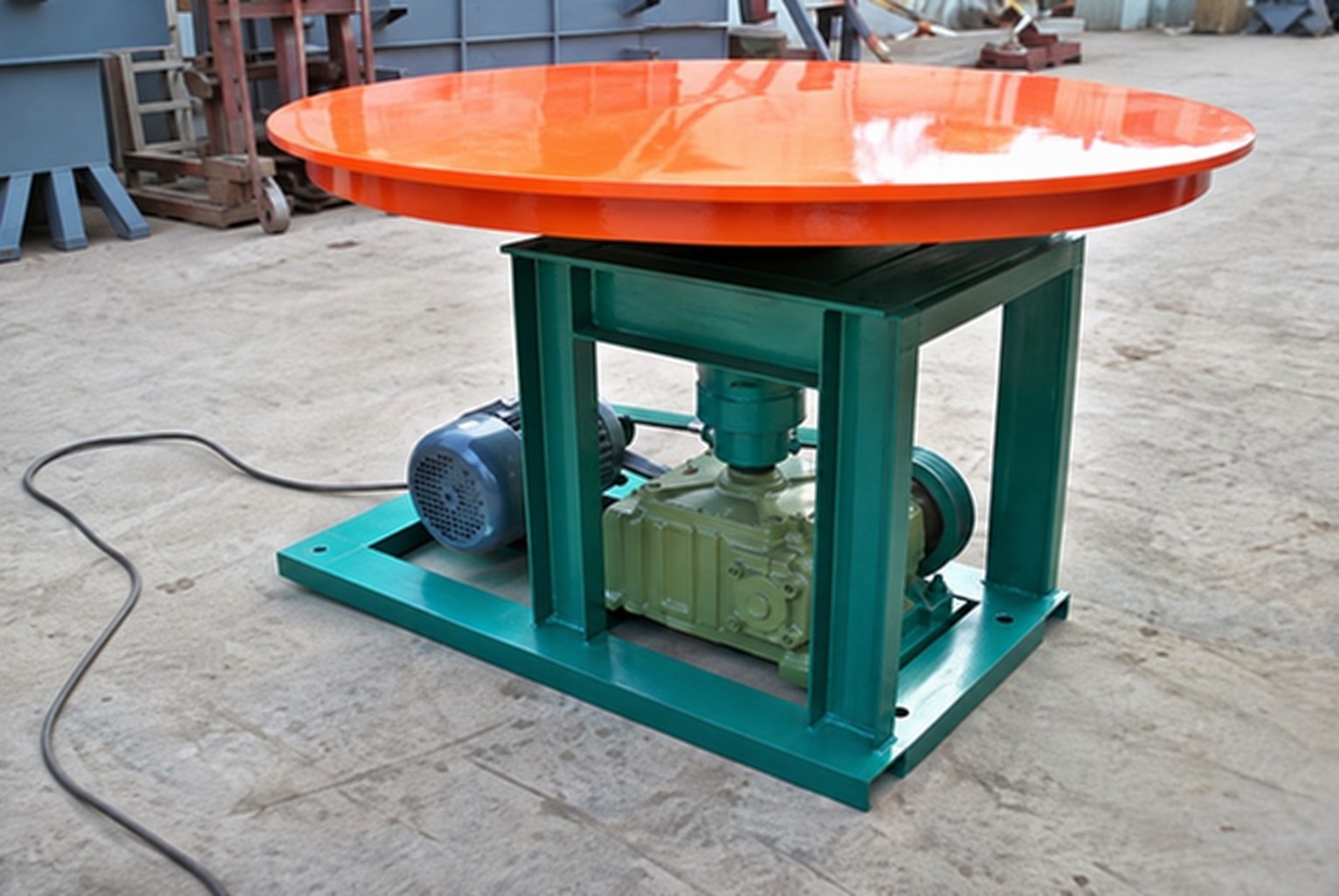

Case Study
An iron dressing plant in Shandong purchased a disc feeder from Huston. It uses fused porcelain lining plates and has strong resistance to erosion and grinding. In practical applications, no production accidents such as material leakage or equipment damage occurred. It is safer than ordinary equipment and ensures the smooth progress of the plant’s production. The disc feeder allows materials to enter a piece of equipment evenly so that the next process can work normally, saving labor, protecting the performance of the equipment, and extending the service life of the entire production line equipment.
