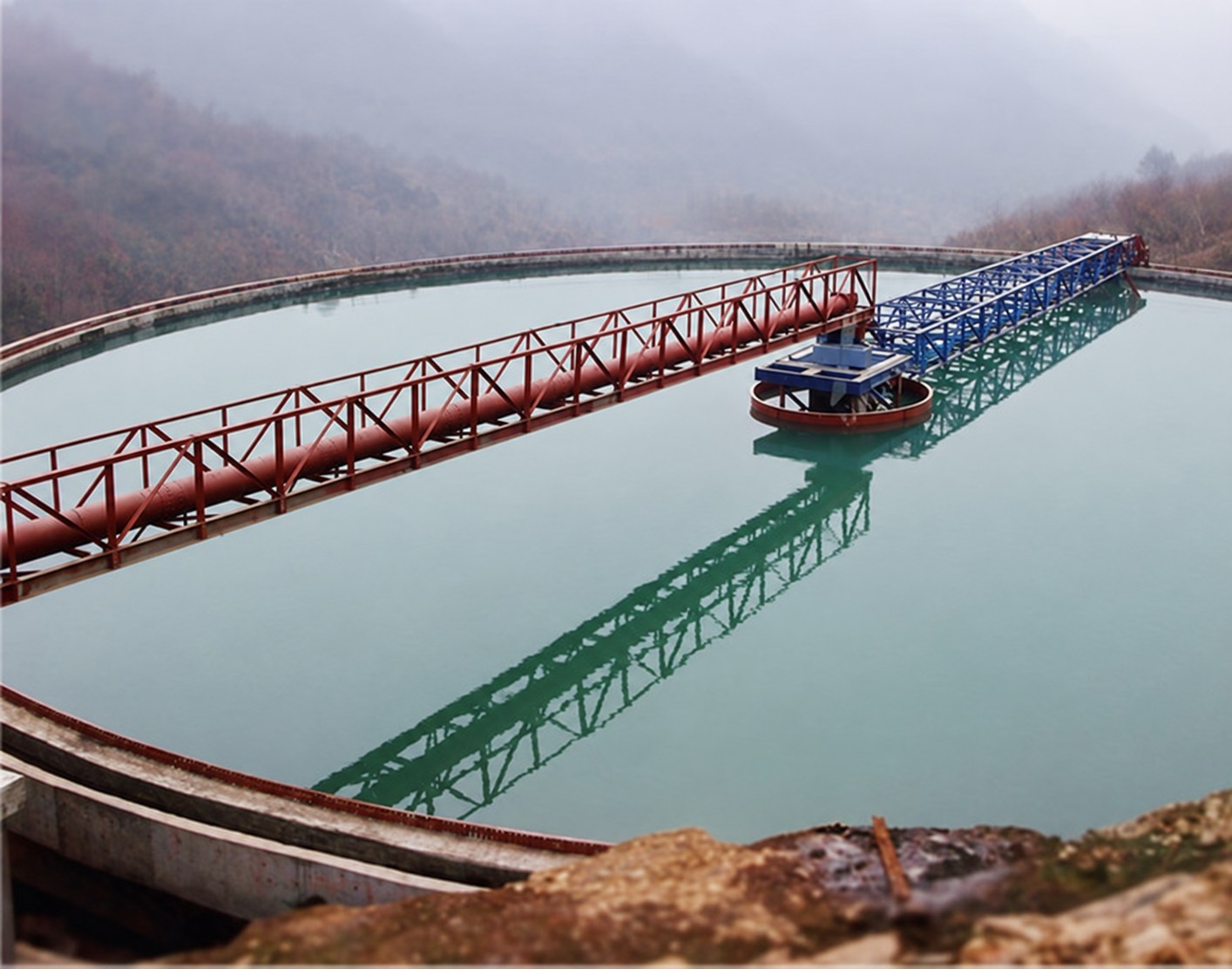

Peripheral roller (rack) transmission concentrator
- Product Introduction: Peripheral rotating concentrators are divided into two types: peripheral roller transmission and peripheral rack transmission.
- Capacity: 88～3400t/d
- Applications: It is mainly used for wet separation and selection dehydration in the mineral processing process, and is used as a stage of concentration and dehydration. It is generally installed between the selection and filtration equipment, and is sometimes used for dehydration before selection. It can also be used for dehydration operations in the chemical industry.
- Product Improvements: Choose a single row of cross-column slewing supports or a single row of four-point contact spherical slewing supports. The current collecting device is well insulated, and the exposed rotating parts have lightweight protective covers.
Advantages and Features
- This enrichment equipment adopts a unique bridge design with good rigidity and strength and strong overload capacity
- traditional type with high safety factor and high stability
- peripheral drive, low energy consumption, smooth and reliable operation
- simple operation and convenient maintenance, and can realize remote control.
Technical Specifications
| Model | Concentration tank diameter (mm) | Center depth of concentration tank (mm) | Processing capacity (t/d) | Sedimentation area (m2) | Motor model | Motor power(kw) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| NG-15 | 15000 | 3612 | 88～390 | 177 | Y132M2-6 | 5.5 | 11702 |
| NG-18 | 18000 | 3500 | 127~560 | 255 | Y132M2-6 | 5.5 | 9718 |
| NG-24 | 24000 | 3400 | 226~1000 | 452 | Y160M-6 | 7.5 | 24000 |
| NG-30 | 30000 | 3940 | 353~1570 | 707 | Y160M-6 | 7.5 | 31000 |
| NG-45 | 45000 | 5060 | 790~2400 | 1590 | Y160L-6 | 11 | 50640 |
| NG-53 | 53000 | 5070 | 1000~3400 | 2202 | Y160L-6 | 11 | 60910 |
| Model | Concentration tank diameter (mm) | Center depth of concentration tank (mm) | Processing capacity (t/d) | Sedimentation area (m2) | Motor model | Motor power(kw) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| NT-15 | 15000 | 3500 | 88～390 | 177 | Y132M2-6 | 5.5 | 11702 |
| NT-18 | 18000 | 3700 | 127~560 | 255 | Y132M2-6 | 5.5 | 12120 |
| NT-24 | 24000 | 3400 | 226~1000 | 452 | Y160M-6 | 7.5 | 28270 |
| NT-30 | 30000 | 3940 | 353~1570 | 707 | Y160M-6 | 7.5 | 31000 |
| NT-45 | 45000 | 5025 | 790~2400 | 1590 | Y160L-6 | 11 | 58640 |
| NT-53 | 53000 | 5070 | 1000~3400 | 1964 | Y160L-6 | 11 | 69410 |
Case Study

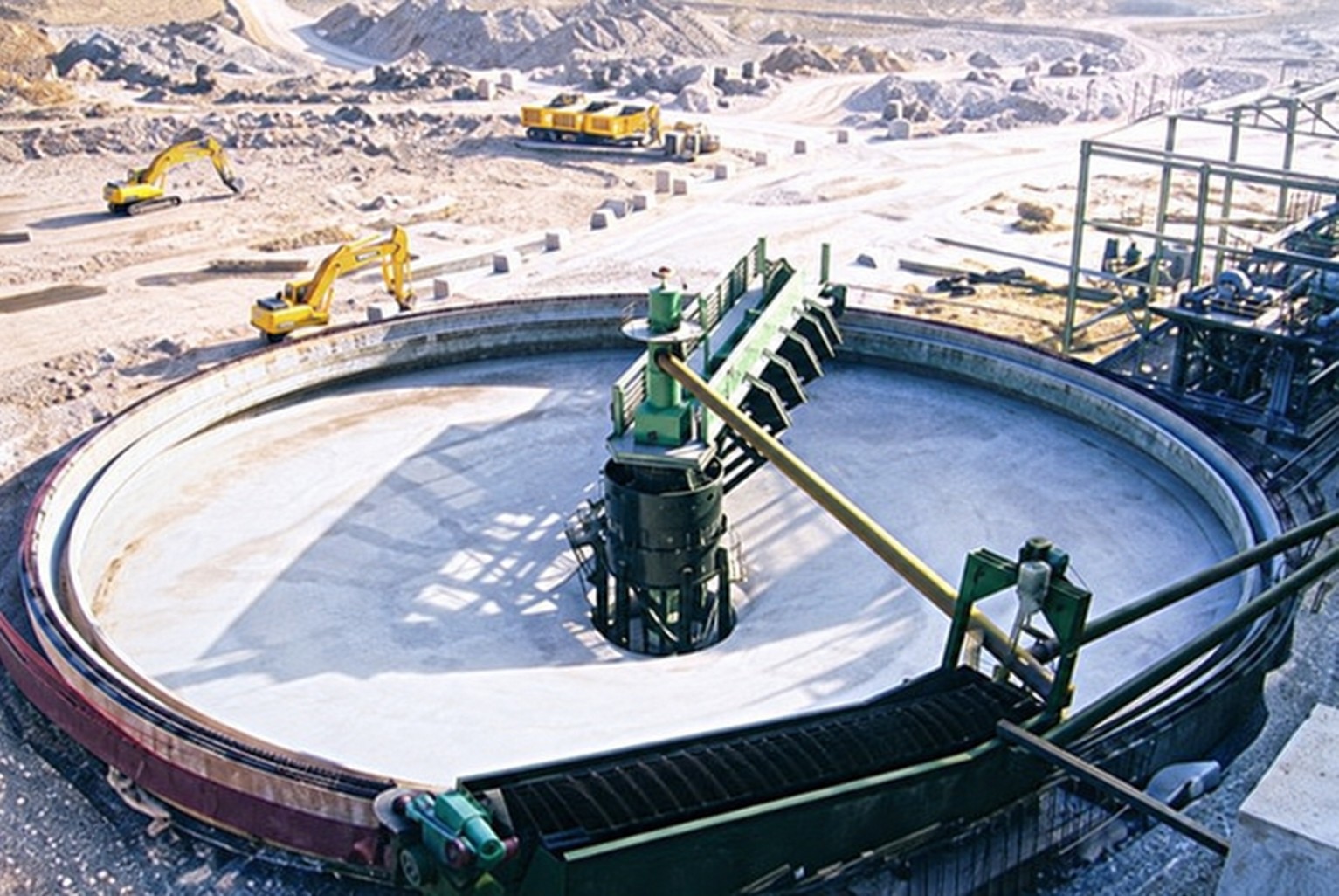

In a certain mineral processing plant, the production capacity of the previously used central drive concentrator did not meet the requirements. After discussion, Huston peripheral roller drive concentrator was used instead. The single-sided rake frame of the peripheral roller concentrator has high processing capacity, high efficiency, low consumables, and low power consumption. It is suitable for both concentrate concentration and tailings dehydration, and is more in line with production capacity requirements.
