Hydraulic center drive high efficiency concentrator

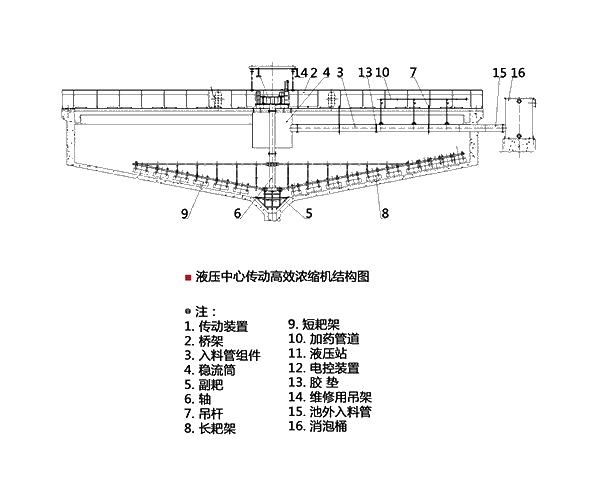

The hydraulic center drive concentrator is mainly composed of a transmission device, a bridge, a dosing device, a feed pipe, a fixed cylinder, a cloth cylinder, a scraper, a shaft, a long rake, a short rake, a boom, an electronic control device, a hydraulic station, a hanger for maintenance, etc. The Center Drive Concentrator Using flocculation technology, the slurry is directly input into the compression area of the concentrator, forming a filter bed layer in the pool. The unflocculated fine particles in the slurry input from the bottom are washed up by the water flow and pass through the filter bed. They collide with the particles in this layer. Due to the action of the flocculant, they are The particles combine together and sink, thereby increasing the concentration of the bottom slurry, while the concentration of the overflow water in the upper layer decreases. Due to the use of flocculants, the particles easily form agglomerates, the settling speed is accelerated, and the processing capacity per unit area is significantly improved, which is 4 to 8 times that of traditional concentrators.

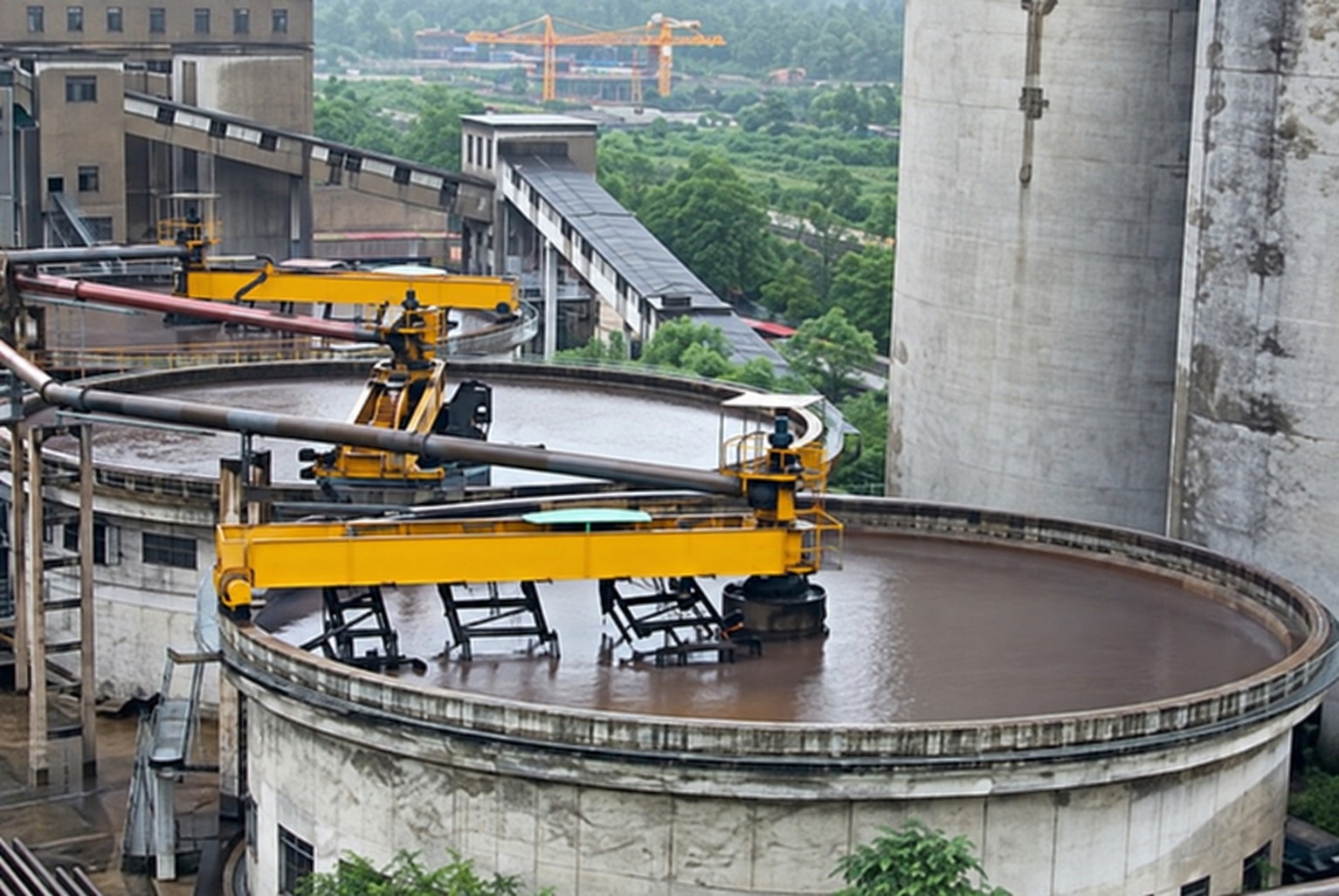

The new concentration equipment of the gold mine cyanide plant uses an ordinary center-driven concentrator, but the processing capacity has not reached the expected target. At the same time, the rake frame must be lifted regularly, which consumes man-hours and has low work efficiency. On this basis, two improved hydraulic center-driven high-efficiency concentrators were added. Hydraulic type, larger processing capacity, high concentration efficiency; in addition, the core PLC automatically senses the pressure sensing signal to realize hydraulic automatic rake lifting, with high production efficiency. Ultimately, the concentration target is achieved more efficiently.
