SKU:
XH-SZNSJ
Category: Thickening Equipment
High efficiency deep cone concentrator
- Product Introduction: A developed high-efficiency deep cone concentrator with an underflow concentration of up to 70%.
- Capacity: 60～2600 m³/h
- Applications: The high-efficiency deep cone multi-cone concentrator is mainly used for high-concentration concentration of minerals in mineral processing plants, and can also be used for the concentration of other fine-grained, low-density slurries and wastewater treatment.
- Product Improvements: Large angle bottom cone, high bottom flow concentration; small footprint, high degree of automation, and energy saving.
Advantages and Features
- The pool height of this concentrator equipment is much larger than the pool diameter, and the overall shape is a vertical barrel cone
- the high-efficiency deep cone concentrator has a slender pool body, and flocculant is added during the concentration process, which accelerates the concentration process of material settlement and overflow water clarification
- the new design improves the underflow concentration and the quality of the overflow water
- it can truly realize intelligent operation
- the processing capacity is 3-8 times higher than that of the traditional concentrator, and the underflow concentration can reach 300-800 g/L, the quality of overflow water can meet the national discharge standards.

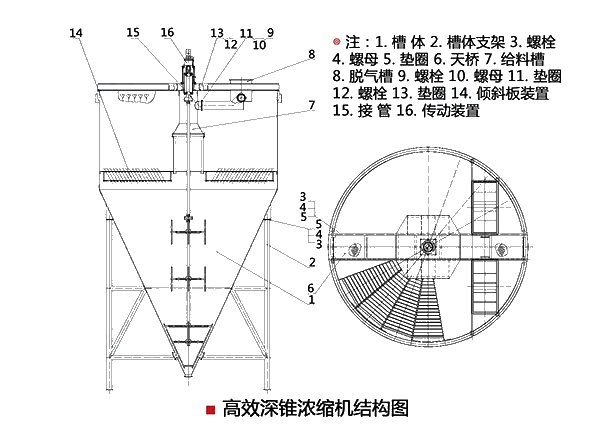

Working Principle
The thickener is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the thickening tank settle under the action of gravity, and the upper part becomes clarified water, allowing solid and liquid to be separated. The sludge deposited at the bottom of the concentration tank is continuously scraped by a rake scraper to the ore discharge port in the center of the bottom of the tank and discharged, while the clarified water overflows from the upper edge of the concentration tank. Deep cone concentrator is also called paste concentrator. In addition to the characteristics of high-efficiency concentrator, it is also characterized by deep cone, which is much higher than other concentrators. It is mainly composed of deep cone, feeding device, stirring device, control box, dosing device and automatic control system.
Technical Specifications
| Model | Pool diameter (mm) | Pool depth(mm) | Settlement area (m2) | Processing capacity (m3/h) |
|---|---|---|---|---|
| GSNG-3 | 3000 | 4400 | 21 | 60-70 |
| GSNG-6 | 6000 | 8800 | 85 | 210-260 |
| GSNG-9 | 9000 | 13500 | 310 | 570-700 |
| GSNG-12 | 12000 | 17500 | 510 | 800-1200 |
| GSNG-15 | 15000 | 19000 | 1200 | 1000-1500 |
| GSNG-18 | 18000 | 22000 | 2000 | 1400-2100 |
| GSNG-20 | 20000 | 22800 | 2700 | 2100-2600 |
Case Study
Because a copper ore concentrator is affected by the site area, almost all of the equipment required is products that occupy a small area. In the concentration stage, the high-efficiency deep cone concentrator better solves this problem. The cone of the deep cone concentrator occupies a small area and has a large processing capacity; the pool height is greater than the pool diameter, and the pool body is slender, which speeds up the processing speed. In addition, Huston’s deep cone concentrator has a higher degree of automation, is more energy-saving, and has more obvious cost control.
