SKU:
XH-CKYLJ
Category: Dewatering Equipment

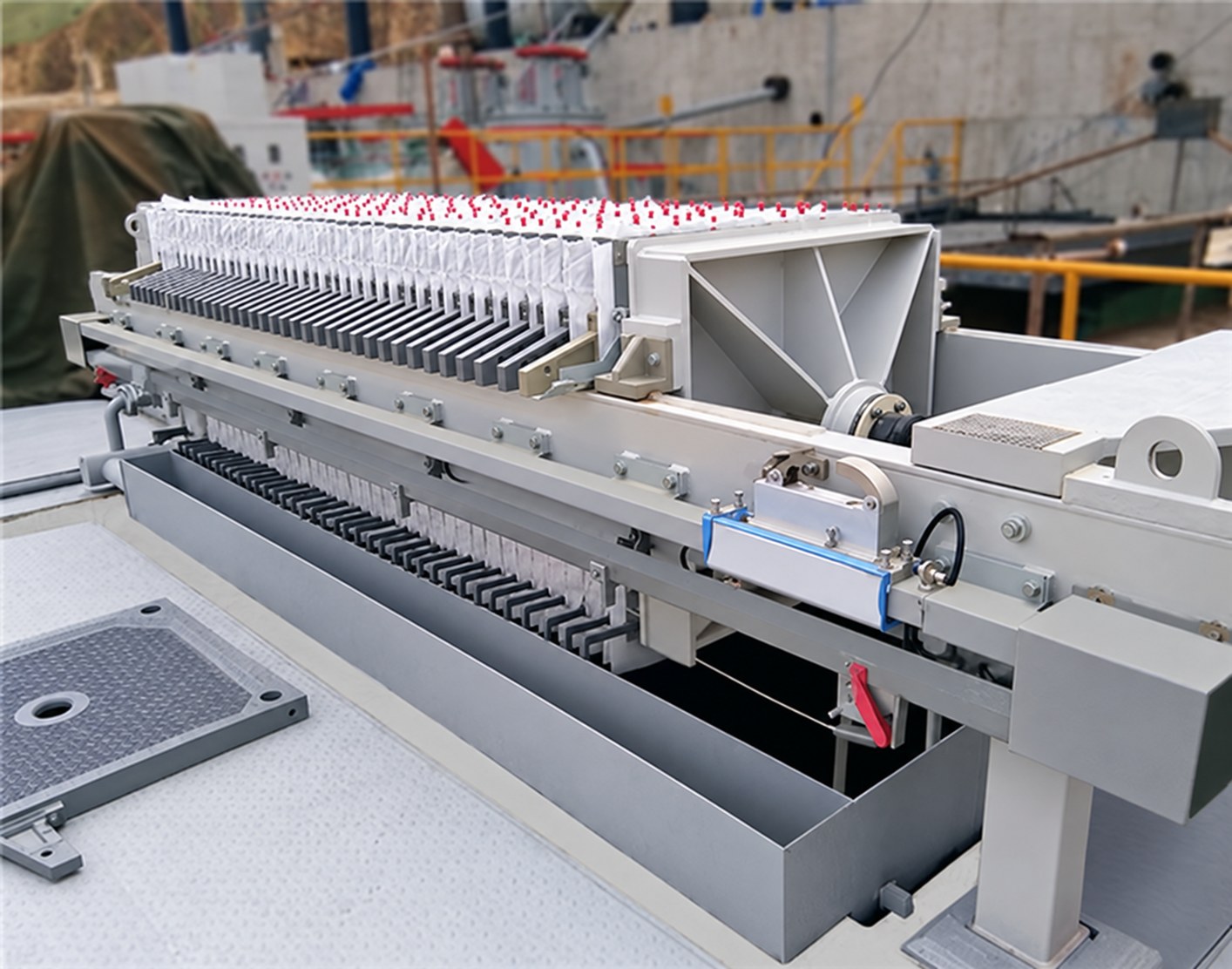

Program-controlled automatic hydraulic chamber filter press
- Product Introduction: A dehydration equipment that uses the pressure of the slurry pump to make liquid pass through the filter cloth. It is divided into box filter press and plate and frame filter press.
- Capacity: 20～1000 ㎡
- Applications: Huston plate and frame filters can be widely used in environmental protection industries such as medicine, chemical industry, standard parts, pharmaceuticals, metallurgy, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment, etc. Application range of hydraulic chamber filter press: Suitable for concentrate filtration and tailings filtration and dry discharge operations, with product particle size up to -500 mesh. Scope of application of plate and frame filter press: dehydration of (gold, silver, copper, iron, zinc) ore, rare earth and other fine ores, and tailings dam treatment.
- Product Improvements: The plastic steel filter plate of the hydraulic chamber filter press is precision-cast, resistant to high temperatures, high pressures, and durable; programmable control and automated operation.
Advantages and Features
The equipment has stable performance, high degree of automation, safety, reliability, and easy operation, and can realize backwash operations.

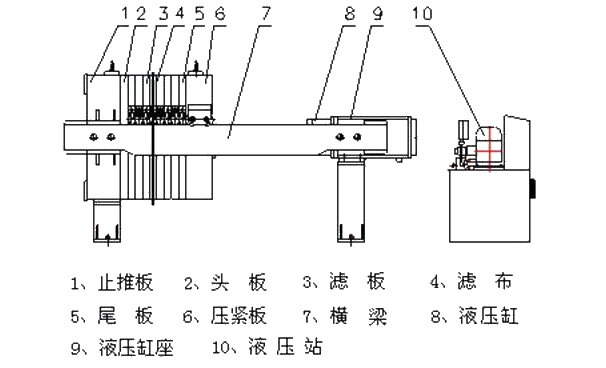

Working Principle
The program-controlled automatic hydraulic box filter press is an intermittent solid-liquid separation equipment. It is designed and manufactured with mechanical and electrical integration. It has a reasonable structure and is simple and convenient to operate. It can realize various processes such as filter plate compression, pressure maintaining, and filter plate loosening. The filter chamber is composed of a box plate, a filter frame plate or an arrangement of box plates. Under the pressure of the feed pump, the slurry is sent into the filter chamber, and the solid and liquid are separated through the filter medium. The filtration mechanism consists of a filter plate, a filter frame, a filter cloth, and a press diaphragm. Both sides of the filter plate are covered by filter cloth. When a press diaphragm is required, a set of filter plates consists of a diaphragm plate and side plates.
Technical Specifications
| Model | Filter area(M2) | Number of filter chambers | Filter plate specifications (MM) | Filter cake thickness (MM) | Filter chamber volume (M3) | Filtration pressure (MPA) | Overall dimensions (MM) | Motor power (kW) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| XM/AZ 20/800U | 20 | 20 | 800×800×60 | 30 | 0.287 | 0.5~1.6 | 3500×1350×1160 | 2.2 | 2750 |
| XM/AZ 30/800U | 30 | 30 | 0.453 | 4110×1350×1160 | 3130 | ||||
| XM/AZ 40/800U | 40 | 40 | 0.605 | 4720×1350×1160 | 3420 | ||||
| XM/AZ 50/800U | 50 | 50 | 0.756 | 5330×1350×1160 | 3700 | ||||
| XM/AZ 60/800U | 60 | 60 | 0.907 | 5940×1350×1160 | 4110 | ||||
| XM/AZ 70/800U | 70 | 70 | 1.059 | 6550×1350×1160 | 4400 | ||||
| XM/AZ 80/800U | 80 | 80 | 1.21 | 7160×1350×1160 | 4740 | ||||
| XM/AZ 40/900U | 40 | 32 | 900×900×60 | 30 | 0.59 | 0.5~1.6 | 4230×1480×1280 | 2.2 | 4500 |
| XM/AZ 50/900U | 50 | 40 | 0.75 | 4720×1480×1280 | 4800 | ||||
| XM/AZ 60/900U | 60 | 47 | 0.88 | 5150×1480×1280 | 5100 | ||||
| XM/AZ 70/900U | 70 | 63 | 1.19 | 6120×1480×1280 | 5700 | ||||
| XM/AZ 60/1000U | 60 | 38 | 1000×1000×60 | 30 | 0.9 | 0.5~1.6 | 5450×1560×1360 | 2.2 | 7080 |
| XM/AZ 80/1000U | 80 | 50 | 1.19 | 6180×1560×1360 | 7830 | ||||
| XM/AZ 100/1000U | 100 | 62 | 1.48 | 6910×1560×1360 | 8680 | ||||
| XM/AZ 120/1000U | 120 | 75 | 1.8 | 7710×1560×1360 | 9250 | ||||
| XM/AZ 125/1250U | 120 | 46 | 1250×1250×65 | 32 | 1.9 | 0.5~1.6 | 6500×1770×1620 | 4 | 10900 |
| XM/AZ 150/1250U | 150 | 58 | 2.41 | 7290×1770×1620 | 11800 | ||||
| XM/AZ 180/1250U | 180 | 69 | 2.88 | 8020×1770×1620 | 12700 | ||||
| XM/AZ 200/1250U | 200 | 77 | 3.22 | 8550×1770×1620 | 13300 | ||||
| XM/AZ 220/1250U | 220 | 84 | 3.51 | 9010×1770×1620 | 13900 | ||||
| XM/AZ 250/1250U | 250 | 95 | 3.98 | 9740×1770×1620 | 14800 | ||||
| XM/AZ 300/1500U | 300 | 77 | 1500×1500×70 | 32 | 4.76 | 0.5~1.6 | 10040×2400×1800 | 5.5 | 26500 |
| XM/AZ 320/1500U | 320 | 83 | 5.14 | 10460×2400×1800 | 27190 | ||||
| XM/AZ 340/1500U | 340 | 88 | 5.45 | 10820×2400×1800 | 27880 | ||||
| XM/AZ 350/1500U | 350 | 90 | 5.58 | 10960×2400×1800 | 28230 | ||||
| XM/AZ 380/1500U | 380 | 98 | 6.08 | 11530×2400×1800 | 29260 | ||||
| XM/AZ 400/1500U | 400 | 103 | 6.39 | 11880×2400×1800 | 29950 | ||||
| XM/AZ 450/1500U | 450 | 116 | 7.21 | 12810×2400×1800 | 31670 | ||||
| XM/AZ 500/1500U | 500 | 128 | 7.96 | 13660×2400×1800 | 33390 | ||||
| XM/AZ 560/2000U | 560 | 80 | 2000×2000×83 | 40 | 11.16 | 0.5~1.6 | 10600×2900×2450 | 11 | 56500 |
| XM/AZ 600/2000U | 600 | 86 | 12.01 | 12110×2900×2450 | 58000 | ||||
| XM/AZ 630/2000U | 630 | 90 | 12.58 | 12440×2900×2450 | 59000 | ||||
| XM/AZ 670/2000U | 670 | 96 | 13.43 | 12950×2900×2450 | 60500 | ||||
| XM/AZ 710/2000U | 710 | 101 | 14.13 | 13370×2900×2450 | 62000 | ||||
| XM/AZ 750/2000U | 750 | 107 | 14.98 | 13870×2900×2450 | 63300 | ||||
| XM/AZ 800/2000U | 800 | 114 | 15.97 | 14460×2900×2450 | 65200 | ||||
| XM/AZ 850/2000U | 850 | 121 | 16.96 | 15050×2900×2450 | 67000 | ||||
| XM/AZ 900/2000U | 900 | 128 | 17.95 | 15640×2900×2450 | 69000 | ||||
| XM/AZ 950/2000U | 950 | 135 | 18.94 | 16220×2900×2450 | 70600 | ||||
| XM/AZ 1000/2000U | 1000 | 142 | 19.92 | 16810×2900×2450 | 72300 | ||||
| XM/AZ 1060/2000U | 1060 | 151 | 21.2 | 17570×2900×2450 | 74500 | ||||
| XM/AZ 1120/2000U | 1120 | 159 | 22.33 | 18240×2900×2450 | 76800 | ||||
| XM/AZ 1180/2000U | 1180 | 168 | 23.61 | 19000×2900×2450 | 79000 |
Case Study
A mineral processing plant in Henan is located in a relatively remote location with a large plant area and a large processing capacity. However, the power supply is insufficient and solid-liquid separation often has problems. Huston specially added a frequency converter to the program-controlled automatic hydraulic chamber filter press to stabilize the current. The solid-liquid separation effect was significantly improved, and the processing capacity was also increased by 11% compared with the previous filter press.
