Category: Dewatering Equipment

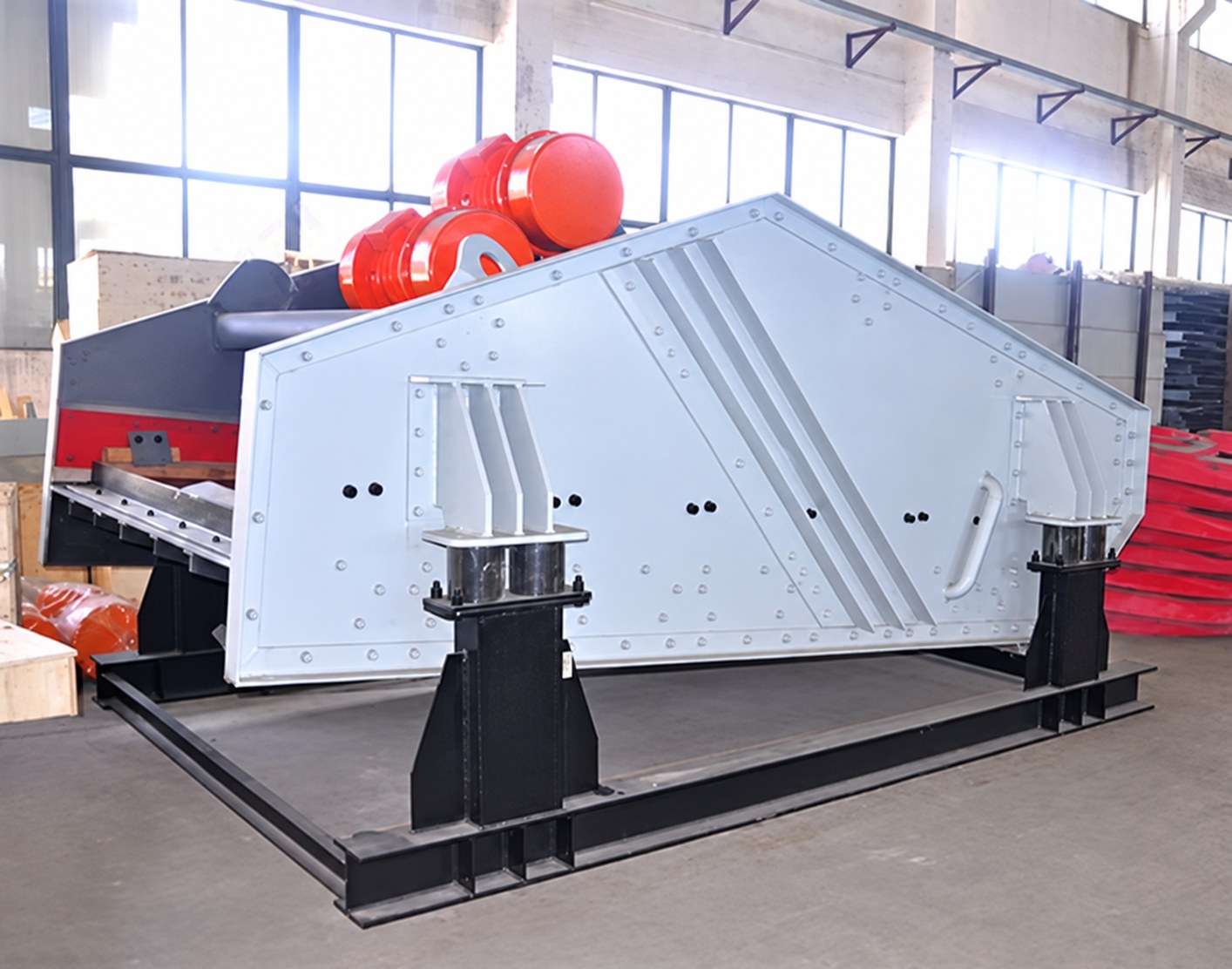

High-efficiency high-frequency dewatering screen
- Product Introduction: A uniquely designed dehydration equipment with large processing capacity and sufficient dehydration.
- Capacity: ≤250t/h
- Applications: Huston high-frequency vibrating dewatering screens are widely used in filtration and dehydration equipment industries such as tailings dry discharge, concentrate dehydration, slurry concentration, chip removal, and carbon slurry separation. Huston high-efficiency dehydration screen is particularly suitable for processing fine-grained minerals. It can also be used in conjunction with Huston XC series cyclones to achieve higher and more complete dehydration efficiency. It can be widely used in tailings dry discharge, concentrate dehydration and other operations.
- Product Improvements: The Huston tailings dewatering screen adopts the opening method on the side of the screen plate, which allows part of the water to flow out quickly from the hole, speeding up the dehydration speed. In addition, it also avoids damage caused by water splashing onto the motor.
Advantages and Features
- Huston high-efficiency dewatering screen has an integral riveted screen box with high strength, good rigidity, no thermal stress, modular screen plate and sealing strip installation form, and good sealing effect
- Huston tailings dewatering screen has wear-resistant rubber on the side protection plate to ensure that the dewatering screen will not be deformed and broken due to wear, and reduces the contamination of materials by iron
- The contact material position is covered with wear-resistant natural rubber, which is anti-corrosion and wear-resistant
- a rear low-concentration slurry overflow pipe is installed to speed up dehydration
- The -5° inclination screen surface allows the discharged material on the screen to have lower moisture content
- the wear-resistant rubber shock-absorbing device makes the screen run more stable and durable
- the high-efficiency dewatering screen has a complete range of models and high dehydration efficiency.
Working Principle

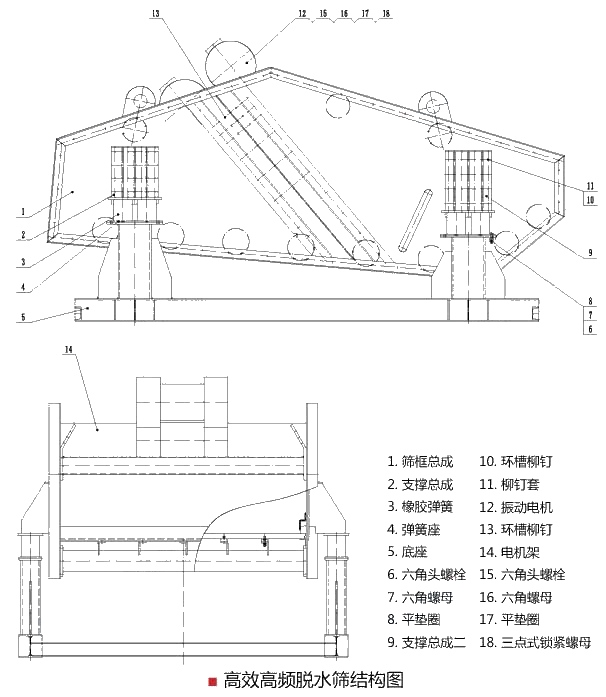

Huston high-efficiency dewatering screen adopts dual-motor self-synchronization technology, universal eccentric block, and adjustable amplitude vibrator. The screen is mainly composed of screen box, vibrator, support system and motor. Two unrelated vibrators run in opposite directions synchronously, and the centrifugal forces generated by the two sets of eccentric masses are superimposed along the vibration direction, and the reverse centrifugal force is offset, thereby forming a single excited vibration along the vibration direction, causing the screen box to make reciprocating linear motion.
Technical Specifications
| Specifications and models | 30°% solids volume feed concentration | Single motor power (kW) × quantity (units) | ||||||
|---|---|---|---|---|---|---|---|---|
| Fine coal theoretically -0.5+0.1 (mm) specific gravity 1.5 | Coarse sand is about -5 (mm), -0.6 (mm) 50%, specific gravity 2.7 | Fine sand 90%-1 (mm) specific gravity 2.7 | 980 (r/min) | 1460 (r/min) | ||||
| 1460 (r/min) | 980 (r/min) | 1460 (r/min) | 980 (r/min) | 1460 (r/min) | 980 (r/min) | |||
| VD6 | 6~8 | 10 ~13 | 14 | 28 | 10 | 21 | 2 ×2 | |
| VD9 | 9~12 | 15 ~20 | 21 | 42 | 16 | 32 | 3×2 | |
| VD12 | 15 ~19 | 24 ~30 | 33 | 67 | 25 | 50 | 2.6×2 | 4×2 |
| VD15 | 30 ~35 | 50 ~60 | 63 | 125 | 47 | 94 | 2.4×4 | 2.25×4 |
| VD18 | 35~45 | 60 ~80 | 77 | 153 | 57 | 115 | 3.7×4 | |
| VD21 | — | 85~100 | — | 225 | — | 164 | 15 | — |
| VD24 | 95~110 | 250 | 190 | |||||
Case Study

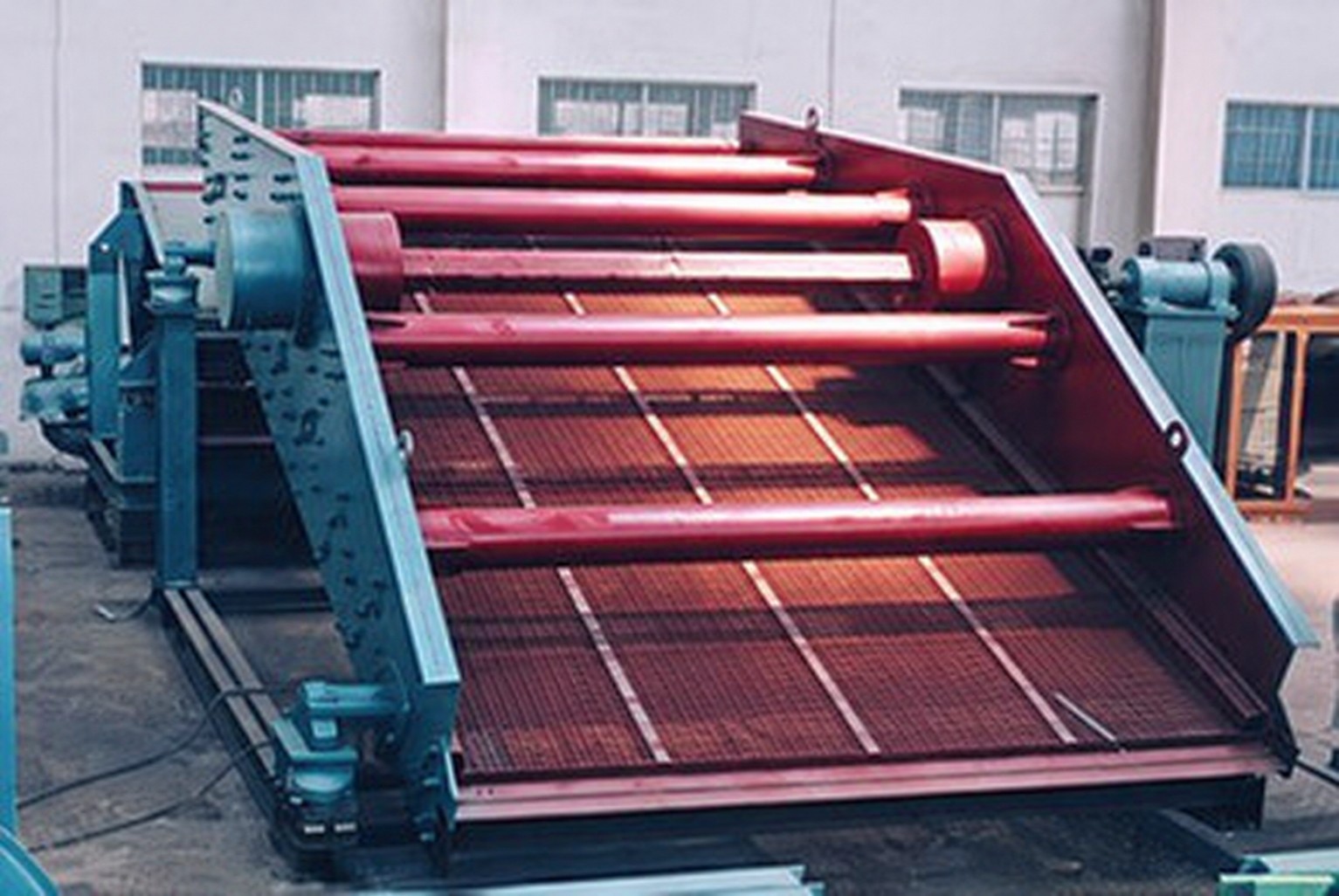

A gold ore dressing plant in Northeast China has a large ore processing capacity. In order to save money and want to use one machine for multiple purposes, it chose Huston high-efficiency high-frequency dehydration screen. According to the customer’s additional requirements, technicians used dual-motor synchronization technology, universal eccentric blocks, and adjustable amplitude vibrators to improve the dewatering screen, reducing damage to the motor and saving money. During the actual use of the machine, compared with the previous dewatering screen, the service life was nearly doubled. The customer was very satisfied and established a long-term cooperative relationship with us.
