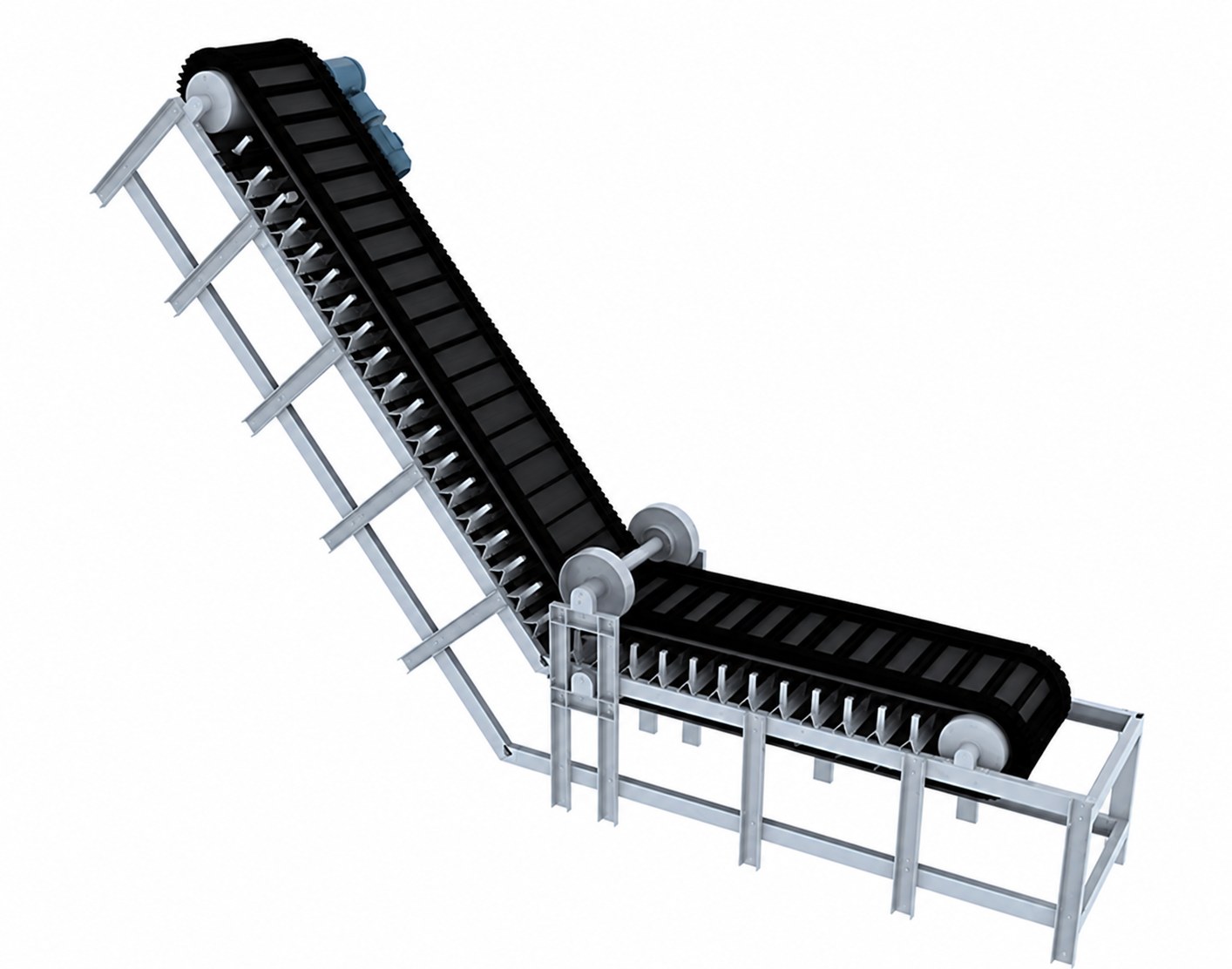

Corrugated edge belt conveyor
- Product Introduction: A conveying equipment for conveying materials at short distances and at large angles.
- Capacity: 13-794 m3/h
- Applications: High-angle belt conveyors are widely used in coal, metallurgy, building materials, grain, chemical industry, electric power and other departments, and are used in underground mining projects, open-pit mining, large self-unloading ships, etc.
- Product Improvements: This conveyor adopts a conveyor belt with corrugated ribs and transverse partitions, and the inclination angle can be arbitrarily arranged in the range of 0-90°.
Advantages and Features
- The high-angle belt conveyor has a large conveying inclination, up to 90°, and is an ideal equipment for large-angle conveying and vertical lifting. Therefore, it can save floor space, save equipment investment and civil construction costs, and achieve good comprehensive economic benefits
- it has a simple structure, and all main components can be used with general-purpose belt conveyors, which brings convenience to use and maintenance
- it operates reliably, and there are no chain jamming, floating chain, broken chain phenomena that often occur with buried scraper conveyors, and the phenomena of slipping and falling buckets that often occur with bucket elevators
- ◎Smooth operation and low noise
- Since there is no excavation resistance during loading and internal friction and external friction resistance during operation, the energy consumption is small
- The vertical edge retaining machine can also be equipped with horizontal conveying sections of any length at the nose and tail to facilitate connection with other equipment.
Working Principle

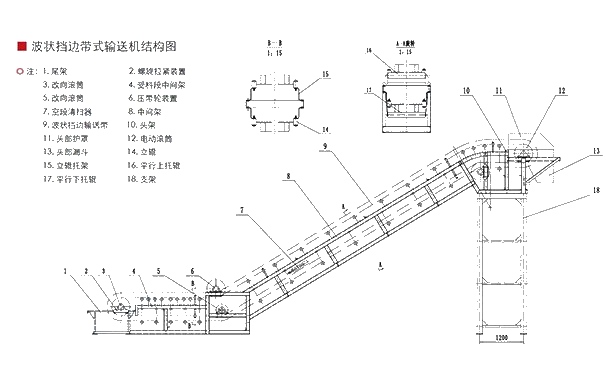

The structure of the large-angle corrugated side belt conveyor is to stick freely retractable rubber corrugated vertical "skirts" on both sides of the parallel rubber conveyor belt, and between the skirts, there are transverse partitions with a certain strength and elasticity glued to form a box-shaped bucket, so that materials can be continuously transported in the bucket.
Technical Specifications
| Bandwidth (mm) | 500 | 650 | 800 | ||||||||||||||||||||
| Sidewall height (mm) | 80 | 120 | 160 | 80 | 120 | 160 | 120 | 160 | 200 | ||||||||||||||
| Partition spacing (mm) | 126 | 252 | 126 | 252 | 378 | 252 | 378 | 126 | 252 | 126 | 252 | 378 | 252 | 378 | 126 | 252 | 378 | 252 | 378 | 252 | 378 | 504 | |
| inclination | 30° | 39 | 21 | — | 52 | 34 | 65 | 45 | 59 | 32 | — | 78 | 52 | 105 | 73 | — | 99 | 65 | 136 | 94 | — | 148 | 113 |
| 40° | 31 | 16 | — | 40 | 26 | 52 | 34 | 47 | 24 | — | 60 | 40 | 85 | 56 | — | 76 | 50 | 110 | 72 | — | 114 | 87 | |
| 50° | 25 | 13 | 60 | 32 | — | 42 | 27 | 37 | 19 | 90 | 48 | — | 68 | 45 | 113 | 60 | — | 88 | 58 | 139 | 91 | — | |
| 60° | 20 | 11 | 50 | 26 | — | 34 | 23 | 31 | 16 | 75 | 39 | — | 55 | 36 | 95 | 49 | — | 72 | 47 | 113 | 74 | — | |
| 70° | 17 | — | 41 | 21 | — | 28 | 18 | 25 | — | 62 | 32 | — | 45 | 30 | 77 | 40 | — | 58 | 38 | 92 | 61 | — | |
| 90° | 10 | — | 25 | — | — | 17 | — | 15 | — | 38 | — | — | 28 | — | 47 | — | — | 36 | — | 57 | 37 | — | |
| Bandwidth (mm) | 1000 | 1200 | |||||||||||||||||||||
| Sidewall height (mm) | 160 | 200 | 240 | 160 | 200 | 240 | 300 | ||||||||||||||||
| Partition spacing (mm) | 252 | 378 | 252 | 378 | 504 | 252 | 378 | 504 | 252 | 378 | 252 | 378 | 504 | 252 | 378 | 504 | 336 | 504 | |||||
| inclination | 30° | 186 | 129 | — | 207 | 159 | — | 283 | 229 | 223 | 154 | — | 250 | 191 | — | 342 | 278 | 410 | 350 | ||||
| 40° | 150 | 99 | — | 160 | 122 | — | 231 | 176 | 180 | 118 | — | 193 | 147 | — | 280 | 213 | 352 | 276 | |||||
| 50° | 120 | 79 | 195 | 128 | — | — | 185 | 141 | 144 | 95 | 235 | 154 | — | — | 224 | 170 | 290 | 221 | |||||
| 60° | 98 | 64 | 159 | 105 | — | 229 | 151 | — | 117 | 77 | 191 | 126 | — | 278 | 183 | — | 237 | 180 | |||||
| 70° | 80 | 52 | 130 | 85 | — | 187 | 123 | — | 96 | 63 | 156 | 103 | — | 226 | 149 | — | 193 | 147 | |||||
| 90° | 49 | — | 80 | 52 | — | 115 | 76 | — | 59 | — | 96 | 63 | — | 139 | 91 | — | 118 | 90 | |||||
| Bandwidth (mm) | 1400 | 1600 | |||||||||||||||||||||
| Sidewall height (mm) | 200 | 240 | 300 | 400 | 200 | 240 | 300 | 400 | |||||||||||||||
| Partition spacing (mm) | 252 | 378 | 504 | 252 | 378 | 504 | 336 | 504 | 420 | 504 | 252 | 378 | 504 | 252 | 378 | 504 | 336 | 504 | 420 | 504 | |||
| inclination | 30° | 299 | 229 | — | 422 | 342 | 512 | 437 | 780 | 707 | — | 355 | 272 | — | 501 | 406 | 614 | 525 | 940 | 852 | |||
| 40° | 281 229 187 115 | 231 | 175 | — | 345 | 262 | 440 | 345 | 709 | 614 | — | 274 | 208 | — | 410 | 311 | 527 | 413 | 855 | 740 | |||
| 50° 60° 70° | 185 151 123 | — | 342 279 | 276 225 184 | 210 | 363 296 241 | 276 225 183 | 634 549 451 | 515 420 343 | 334 272 222 | 220 179 146 | — | 406 331 | 328 267 218 | 249 | 436 355 289 | 331 270 220 | 764 662 543 | 621 507 413 | ||||
| 90° | 75 | — | 171 | 113 | — | 148 | 112 | 277 | 210 | 136 | 90 | — | 203 | 134 | — | 178 | 135 | 333 | 253 | ||||
| Bandwidth (mm) | 500 | 650 | 800 | 1000 | |||||||||
| Sidewall height (mm) | 80 | 120 | 160 | 80 | 120 | 160 | 120 | 160 | 200 | 160 | 200 | 240 | |
| inclination | 30° | 2.0 | 2.0 | 2.0 | 1.6 | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| 100 | 120 | 120 | 100 | 140 | 160 | 140 | 180 | 200 | 180 | 250 | 280 | ||
| 40° | 2.0 | 2.0 | 2.0 | 1.6 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | |
| 100 | 120 | 120 | 100 | 140 | 160 | 140 | 180 | 200 | 180 | 250 | 280 | ||
| 50° | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 2.0 | |
| 80 | 120 | 140 | 80 | 120 | 140 | 120 | 140 | 180 | 140 | 180 | 220 | ||
| 60° | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| 80 | 120 | 140 | 80 | 120 | 140 | 120 | 140 | 180 | 140 | 180 | 220 | ||
| 70° | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| 50 | 60 | 100 | 50 | 60 | 100 | 120 | 100 | 140 | 100 | 140 | 180 | ||
| 90° | 1.0 | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| 50 | 60 | 80 | 50 | 60 | 80 | 60 | 80 | 100 | 80 | 100 | 140 | ||
| Bandwidth (mm) | 1200 | 1400 | 1600 | ||||||||||
| Sidewall height (mm) | 160 | 200 | 240 | 300 | 200 | 240 | 300 | 400 | 200 | 240 | 300 | 400 | |
| Inclination angle R | 30° | 2.5 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 |
| 160 | 250 | 280 | 310 | 250 | 280 | 350 | 350 | 250 | 280 | 350 | 350 | ||
| 40° | 2.5 | 2.5 | 3.15 | 3.15 | 2.5 | 3.15 | 3.15 | 3.15 | 2.5 | 3.15 | 3.15 | 3.15 | |
| 200 | 250 | 280 | 310 | 250 | 280 | 350 | 350 | 250 | 280 | 350 | 350 | ||
| 50° | 1.6 | 2.0 | 2.5 | 2.5 | 2.0 | 2.5 | 2.5 | 2.5 | 2.0 | 2.5 | 2.5 | 2.5 | |
| 140 | 180 | 220 | 280 | 180 | 220 | 280 | 320 | 180 | 220 | 280 | 320 | ||
| 60° | 1.6 | 1.6 | 1.6 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | |
| 140 | 180 | 220 | 280 | 180 | 220 | 280 | 320 | 180 | 220 | 280 | 320 | ||
| 70° | 1.6 | 1.6 | 1.6 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | 1.6 | 1.6 | 2.0 | 2.0 | |
| 100 | 140 | 180 | 200 | 140 | 180 | 200 | 250 | 140 | 180 | 200 | 250 | ||
| 90° | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| 80 | 100 | 140 | 160 | 100 | 140 | 160 | 200 | 100 | 140 | 160 | 200 | ||
Case Study

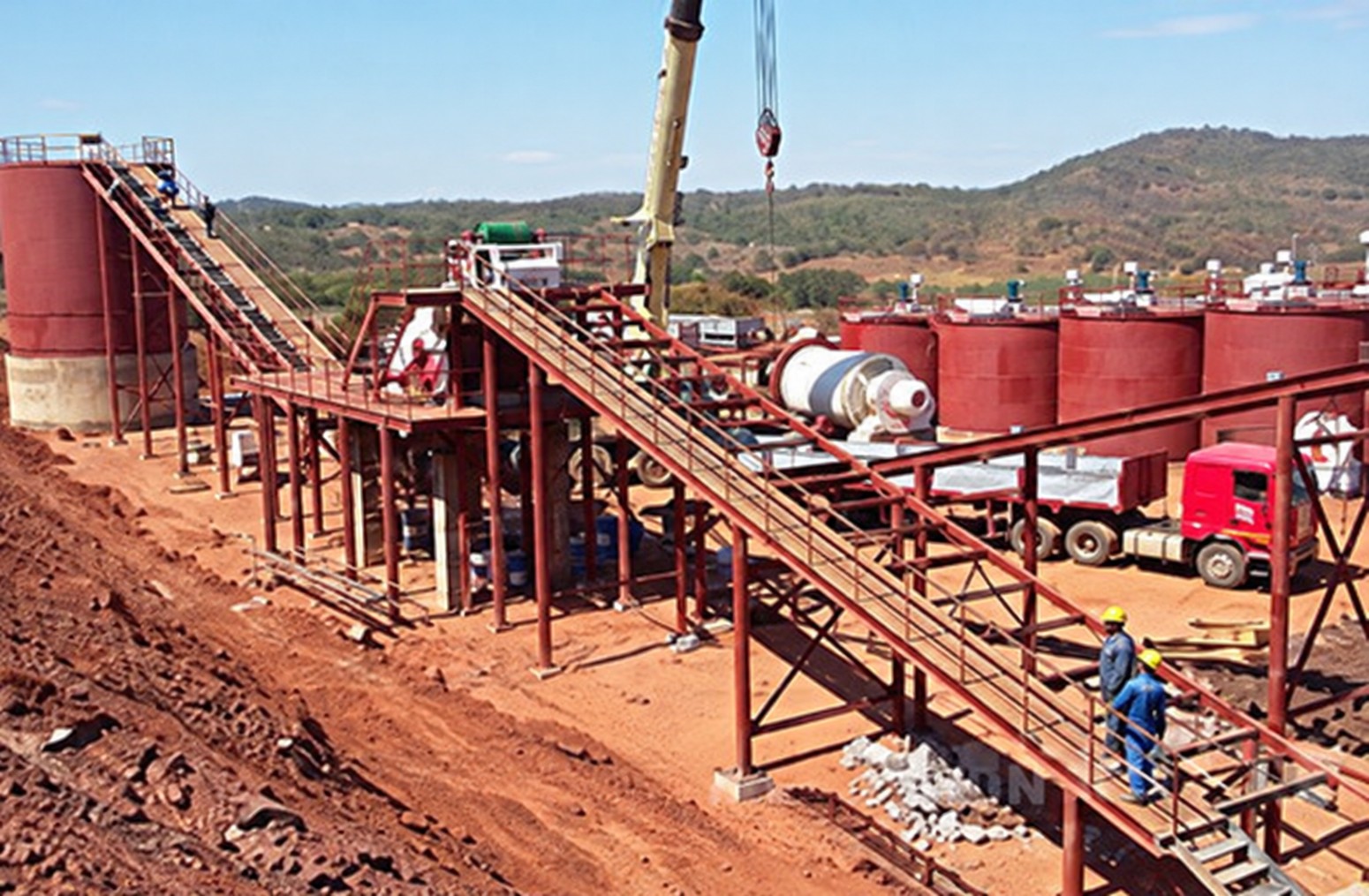

The terrain of a mineral processing plant in Shandong is low-lying, and a large amount of ore needs to be transported 50m away for processing. Huston chose a large-inclination belt conveyor. For this reason, Huston specially added lubricants to the conveyor and deepened the sidewall device to ensure that the conveying inclination of the belt conveyor can be flexibly adjusted and the ore will not fall. Customers reported that there was no chain stuck, floating or broken during use, and the transportation was safe and reliable.
