SKU:
XH-YSJ
Category: Conveying Equipment
Belt conveyor
- Product Introduction: A universal fixed belt conveyor.
- Capacity: 78-2995 t/h
- Applications: Belt conveyors are widely used in metallurgy, transportation, hydropower and other departments to transport bulk materials or finished items due to their advantages such as large transport capacity, simple structure, easy maintenance, low cost, and strong versatility. According to the requirements of the transportation process, they can be transported by a single machine, or they can be transported by multiple machines or combined with other conveyors to form a horizontal or inclined conveying system.
- Product Improvements: The Huston belt conveyor is equipped with a backstop and can be equipped with an electric drum, an external motor-type electric drum or a motor reducer according to actual working conditions.
Advantages and Features
- Huston belt conveyor can use oil-resistant, acid-proof and alkali-resistant rubber belts or plastic belts to transport materials with special properties
- the belt head adopts vulcanized links, which can greatly extend the service life of the conveyor belt
- the conveying is smooth, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed objects
- the conveying capacity is large, the structure is simple, the maintenance is convenient, the operating cost is low, and the application range is wide.

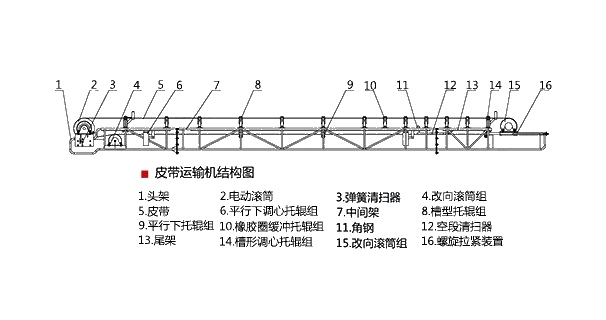

Working Principle
The working environment temperature of Huston belt conveyor is generally between -10℃~+40℃, and the material temperature is required not to exceed 75℃. Heat-resistant rubber belts can transport high-temperature materials below 120℃. Belt conveyors should not be used when the material temperature is higher. At the same time, the loose density of the transported materials should be 2.5t/m3. When transporting materials containing acidic, alkaline, oily substances and organic solvents, oil-resistant, acid-alkali-resistant rubber belts or plastic belts must be used.
Technical Specifications
| Bearing roller form | Belt speed(m/s) | Bandwidth B(mm) | |||||
|---|---|---|---|---|---|---|---|
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Troughed roller | Conveying volume Q(t/h) | ||||||
| 0.8 | 78 | 131 | — | — | — | — | |
| 1.00 | 97 | 104 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 318 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 551 | 1033 | 1556 | 2118 | |
| 3.15 | 824 | 1233 | 1858 | 2528 | |||
| 4.0 | 2202 | 2995 | |||||

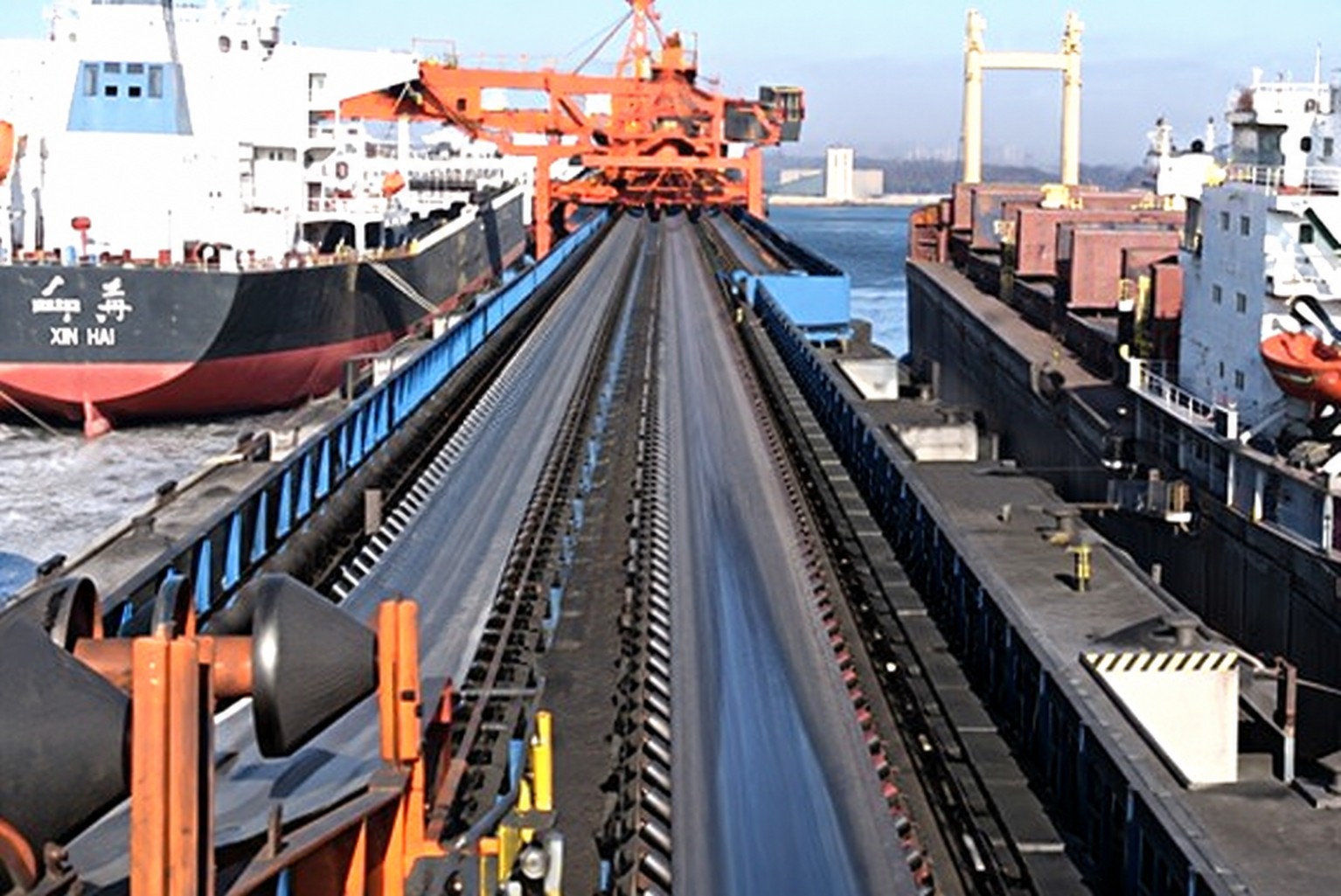

Case Study
The machines at each stage of a copper ore dressing plant in Northeast China are far apart, and the materials produced at each stage have different compositions. After on-site inspections, technicians specially added wear-resistant rubber developed by Huston to the belt conveyor. It can transport loose parts and finished products with a loose density of 500-2500kg/m3, carry 120˚ high-temperature materials, and can transport acid, alkali, oily materials and materials containing organic solvents, solving the transportation problem of the plant.
