SKU:
XH-JYJ
Category: Automation Equipment

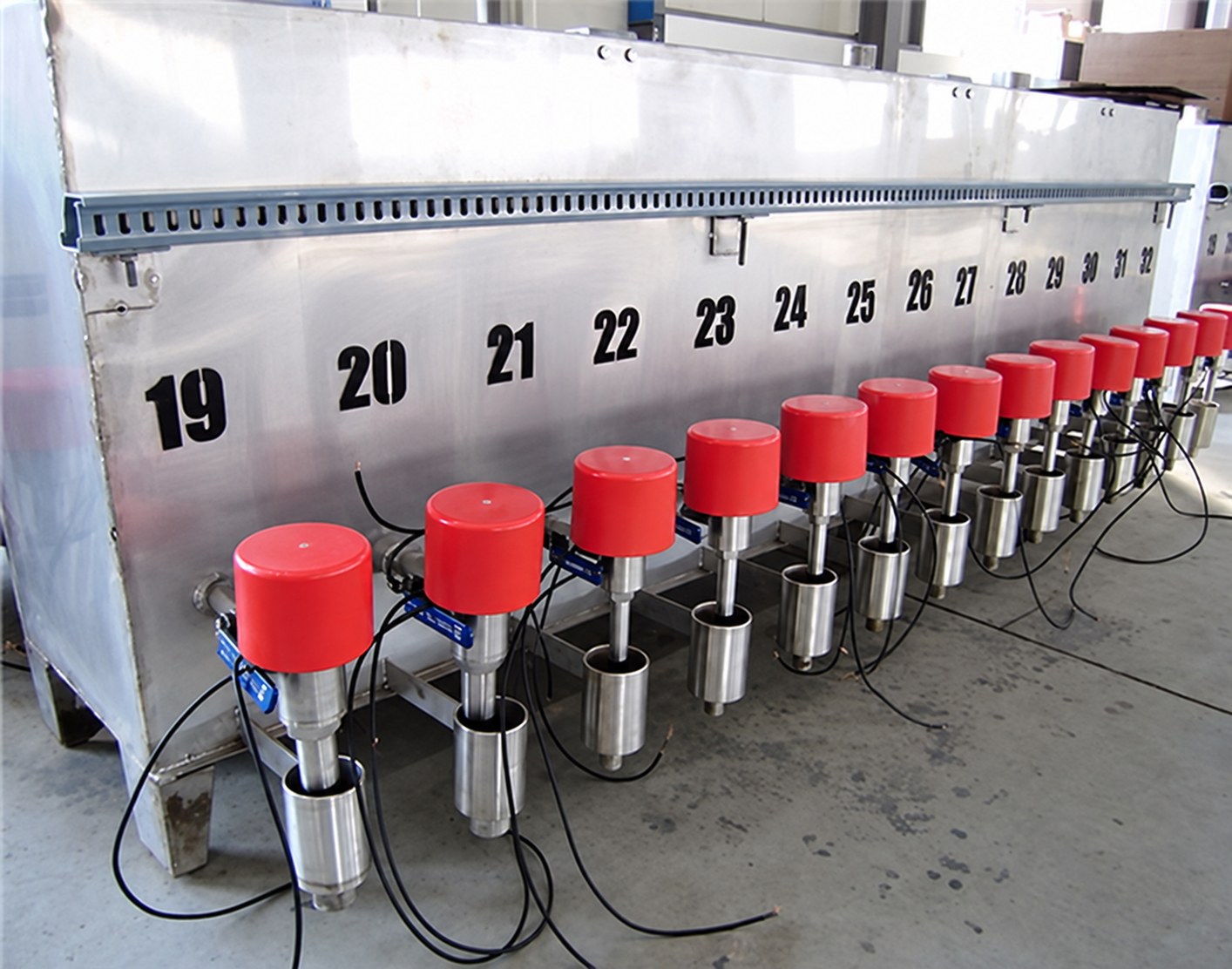

CNC dosing machine
- Product Introduction: An automatic dosing machine with excellent structure and mature technology.
- Capacity: 8-32
- Applications: It can be widely used for precise quantitative control of flotation dosing of black, non-ferrous, precious metals and non-metal minerals, and coal. When changing the dosing amount manually, the inaccuracy of the dosing amount caused by manual operation can be avoided, and the phenomenon of low mineral recovery rate can be avoided.
- Product Improvements: XHGY-B series CNC dosing machine is the third generation product of Huston Mining. The control core adopts German Siemens ddLC, which greatly enhances stability and reliability. The display part adopts high-end LCD touch screen, making the operation more convenient.
Advantages and Features
- Simple maintenance: the special dosing magnetic valve ensures smooth dosing pipeline and avoids clogging of the dosing residue
- Stable dosing: It has a constant pressure device for liquid level, which always controls the liquid level in the medicine tank at the same level
- Improving the process: It is conducive to the management of mineral processing technology and facilitates the adjustment of mineral processing technical indicators
- Economical and practical: It avoids the misoperation of manual dosing operators, stabilizes the mineral processing indicators, and significantly reduces the chemical consumption under the premise of achieving the same process indicators
- Excellent structure: the medicine box, medicine liquid constant device, and various valves are all made of stainless steel and have good corrosion resistance.

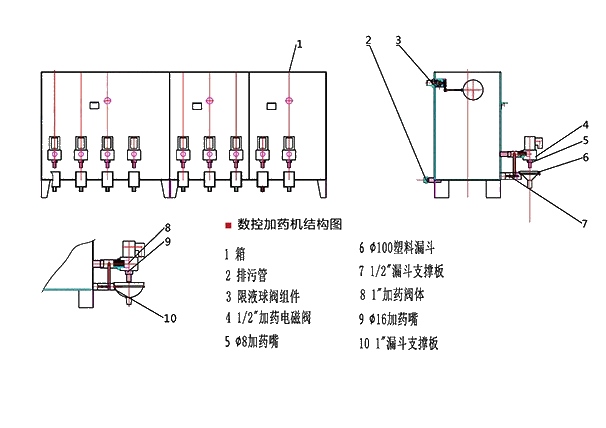

Working Principle
The CNC dosing machine uses a metering pump as the main dosing equipment, and assembles the solvent tank, stirrer, liquid level gauge, safety valve, check valve, pressure gauge, filter, buffer, pipeline, valve, base, escalator, automatic monitoring system, power control system, etc. on a common platform according to the needs of the process flow to form a module, which is the so-called skid-mounted combined unit.
Technical Specifications
If you want to know more about the price, parameters, etc. of Huston automatic dosing machine, you can consult customer service or call 400-827-6866.
Case Study
A lead and zinc factory in Sichuan needed a CNC dosing machine with accurate dosage. It initially selected a domestic brand of dosing machine, but its dosage was inaccurate, causing certain losses to the factory. Through the recommendation of a friend, I chose the Huston automatic dosing device. The dosing machine is reasonably priced and digitally controlled. The dosage of traditional Chinese medicine used in this selection plant is accurate, avoiding waste of medicine and insufficient dosage. The recovery rate is as high as 85%. In terms of safety, the equipment also has excellent performance. When the operator makes an operation error, the automatic power-off function is turned on in a timely manner. There is no need to reset the parameters when the power is turned on again, avoiding unnecessary losses to the factory.
