SKU:
XH-TCQ
Category: Iron Removal Equipment

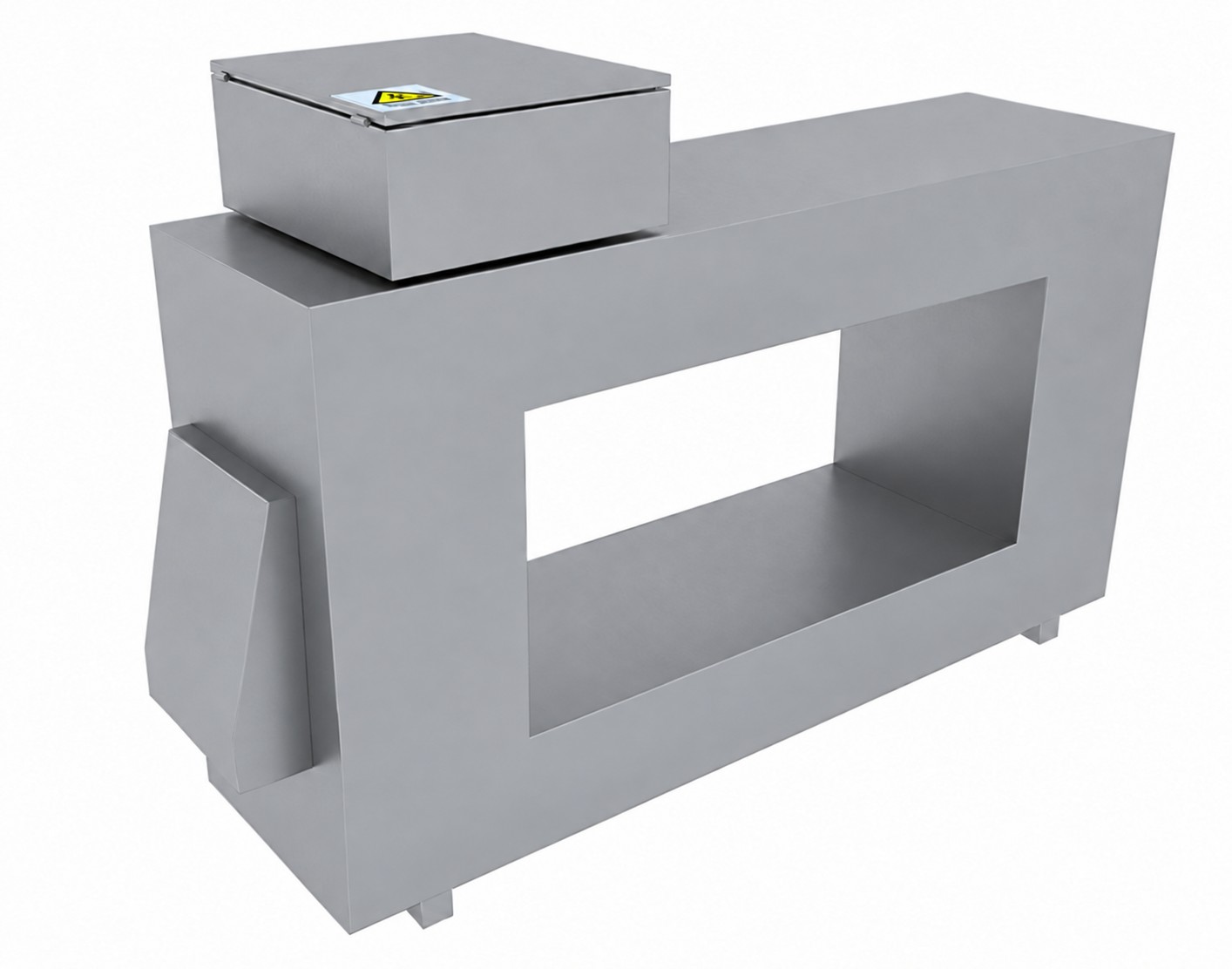

JTQ series metal detector
- Product Introduction: An electromagnetic induction device (iron removal equipment) used to detect iron parts in conveyor belt materials.
- Capacity: 500~1400mm
- Applications: Suitable for food processing, plastic recycling, crushing processing (thermal power plants/mining/mining/mineral processing), glass and ceramic processing, chemical industry, rubber production, papermaking, tobacco, wood, wood boards, logs and paper material processing and other industries, used to detect inclusions or loss in raw materials or products It can remove unnecessary metal impurities such as iron wire, nails, steel nails, screws or lead blocks, aluminum blocks, copper blocks, stainless steel, manganese steel, shovel teeth, etc. It can also prevent unnecessary metal impurities from damaging valuable machinery and equipment in the next process, reduce the risk of mechanical equipment failure, and improve production efficiency.
- Product Improvements: With sound and light alarm function.
Advantages and Features
- Digital phase shifting and related detection technology, stable performance, high detection sensitivity
- strong anti-interference ability
- low cost
- convenient operation and maintenance
- long life

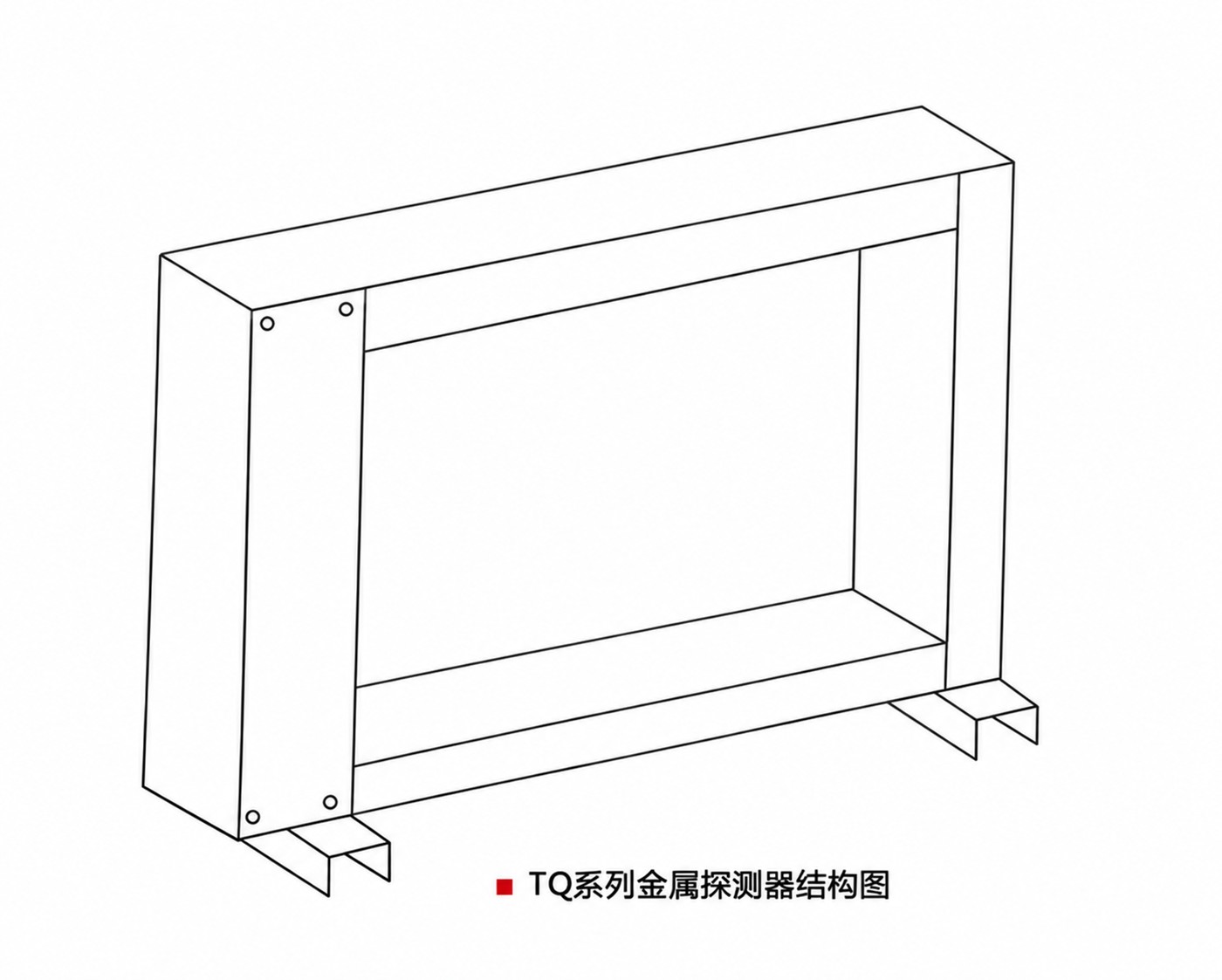

Working Principle
Metal detectors use the changing signals generated when metal enters the electromagnetic field of the sensor to process them through electronic technology and drive the actuator (electromagnet, motor switch) to act, thereby eliminating harmful metals.
Technical Specifications
| Model | Adapted to belt width (mm) | Long axis of inner hole (mm) | Inner hole short axis (mm) | Ordinary mine sensitivity (mm) | Magnetic mineral sensitivity (mm) |
|---|---|---|---|---|---|
| JTQ-500 | 500 | 700 | 330 | 20~25 | 30 |
| JTQ-650 | 650 | 850 | 330 | 25~30 | 35 |
| JTQ-800 | 800 | 950 | 370 | 25~30 | 40 |
| JTQ-1000 | 1000 | 1150 | 410 | 35~40 | 50 |
| JTQ-1200 | 1200 | 1370 | 510 | 45~50 | 60 |
| JTQ-1400 | 1400 | 1590 | 610 | 55~60 | 70 |
Case Study
Hebei Yijin Ore Concentrator mined a large amount of ore from the mine. After crushing, Huston’s metal detectors were selected for detection, which can effectively detect iron parts in the crushed ore. The detector has stable performance and strong anti-interference ability, and is not affected by mineral magnetism during the entire detection process. The tested ore was sorted to extract high-grade gold concentrate with low gold content, which verified the performance of the equipment. At the same time, the equipment has a simple structure and low cost, saving costs for customers.
