SKU:
XH-XNJ
Category: Automation Equipment

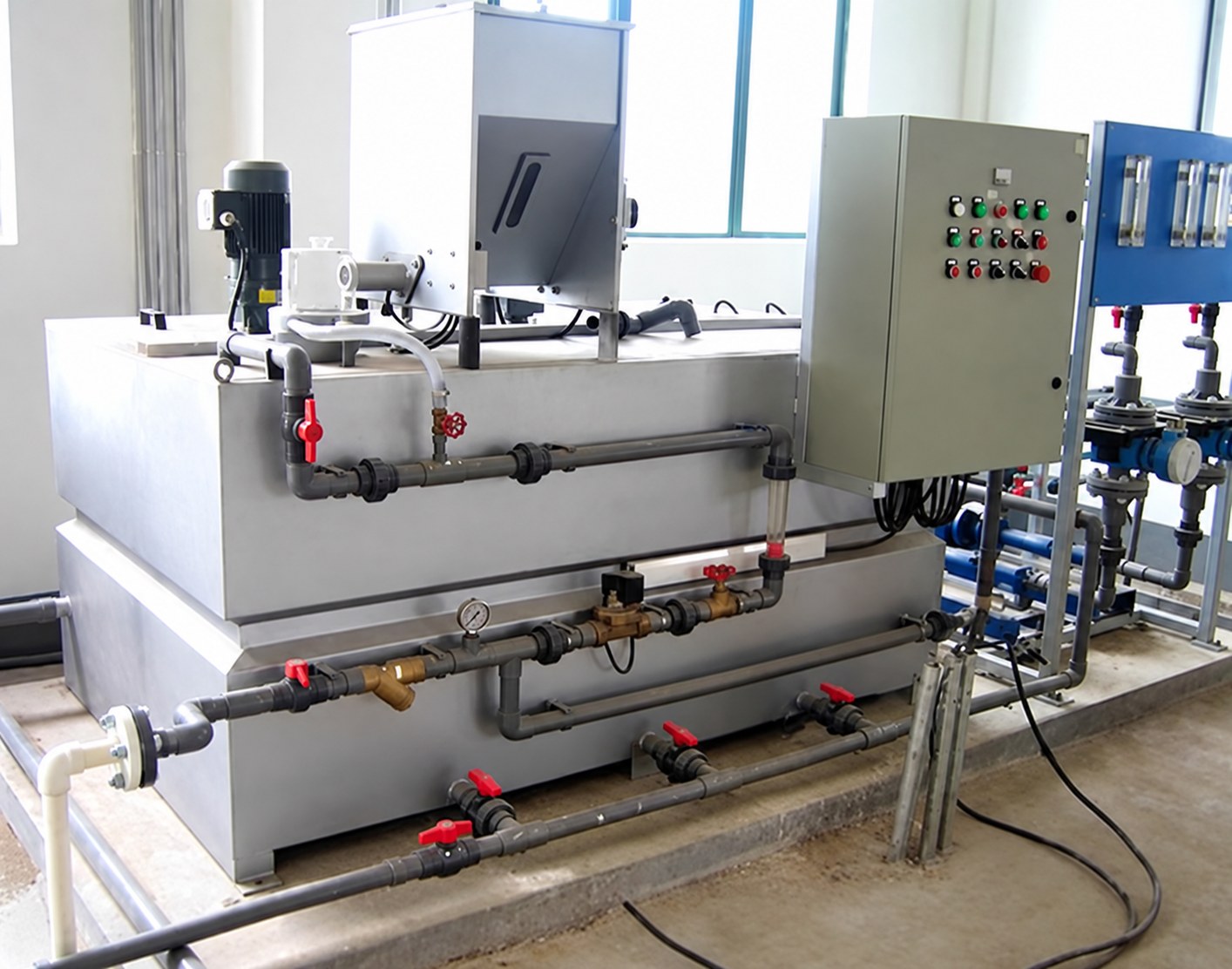

flocculant system
- Product Introduction: A device for continuously and stably adding flocculant powder when preparing flocculant solution.
- Capacity: ≤20A
- Applications: The control box can be applied to all flocculant preparation systems, and Huston Company can make special designs according to special requirements.
- Product Improvements: Speed-adjustable motor, adjustable dosage.
Advantages and Features
- It is used to prepare flocculants in pulp concentration, sewage treatment and other industries. The equipment has the characteristics of one-time preparation and continuous supply
- automatic control, the preparation concentration can be prepared according to the type of flocculant
- the flocculant system can be diluted twice according to the processing volume, which is more conducive to saving chemicals and reducing production costs
- Huston flocculant system is made of stainless steel
- Huston flocculant price, the pharmaceutical department chooses according to user needs.

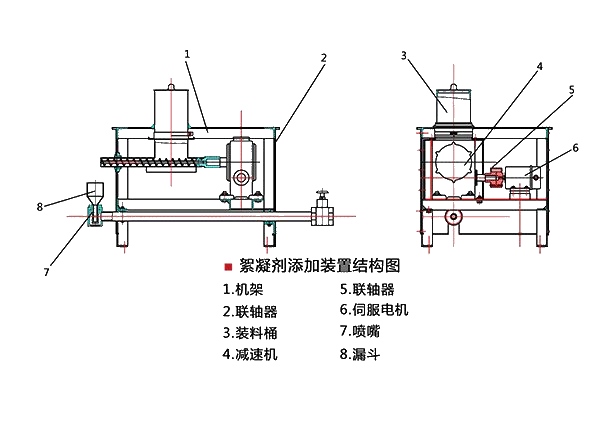

Working Principle
The flocculant automatic dosing device uses a metering pump as the main dosing equipment, and assembles the solvent tank, stirrer, liquid level gauge, safety valve, check valve, pressure gauge, filter, buffer, pipeline, valve, base, escalator, automatic monitoring system, power control system, etc. on a common platform according to the needs of the process flow to form a module, which is the so-called skid-mounted combined unit.
Technical Specifications
| Device model | Volume(L) | Stirring power (kW) | Feeding power (kW) | Vibrator power (W) | Pump power(kW) | Flow meter (L/h) | Flocculant addition amount (Kg/h) |
|---|---|---|---|---|---|---|---|
| XUNJ-3000 | 3000 | 0.75X3 | 0.25 | 35 | 4 | 400〜6000 | 0.4 〜4 |
Case Study
After sorting iron concentrate at an iron ore plant in Shanxi, the sewage will be treated, which requires continuous addition of chemicals. After learning more about it on the Huston website, an automatic flocculant preparation system was purchased. The flocculant system uses intelligent instruments for fully automatic control and fully automatic operation, saving labor. The entire equipment adopts a three-tank overflow solution operating system, which makes the equipment simple in structure, small in size and easy to install. After treatment by this equipment, the sewage discharge volume index meets local requirements.
