SKU:
XH-YZS
Category: Screening Equipment

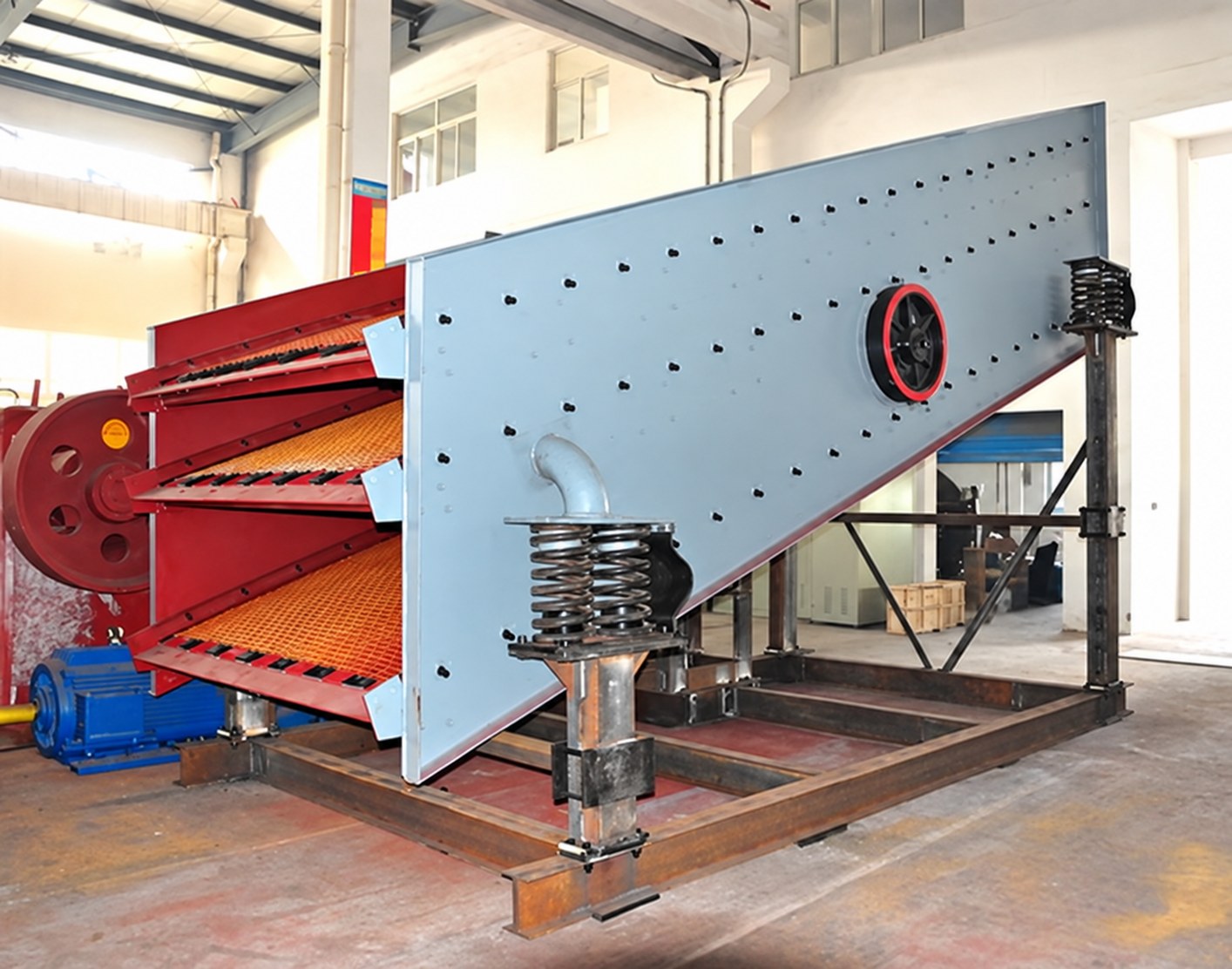

Circular vibrating screen (YA)
- Product Introduction: A mining vibrating screen with a circular motion of the screen box and mature performance.
- Capacity: 80～1700t/h
- Applications: Huston vibrating screening machine is suitable for material classification in mineral processing plants, and can also be used for dehydration, desliming, demediation, etc.
- Product Improvements: Huston circular vibrating screen uses an eccentric shaft plus eccentric block vibrator, which operates smoothly and has high screening efficiency.
Advantages and Features
Circular vibrating screen is a multi-layered, high-efficiency new vibrating screen. It adopts low-stress shock-absorbing springs and has low operating noise. It adopts super-heavy large oil clearance bearings, which has low operating temperature and long service life. It adopts ring-groove rivets and plate-type screen box frame structure, and the screen frame structure has high strength. Wear-resistant rubber screen mesh can be provided, which can make materials stuck in the screen holes jump out and prevent the screen holes from being blocked. Large processing capacity, high versatility of parts and easy maintenance.

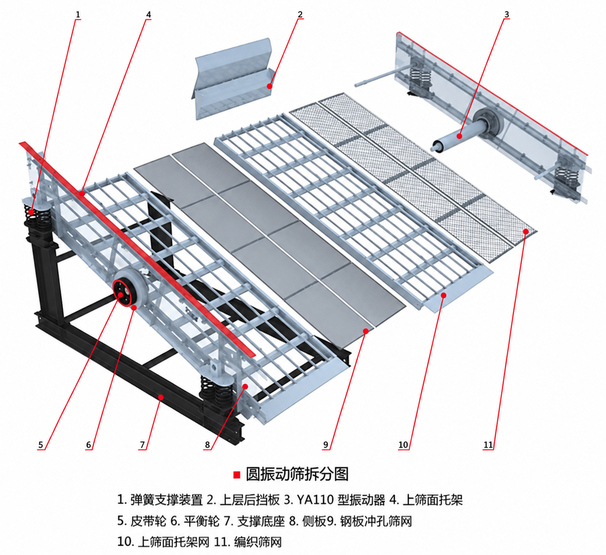

Working Principle
See the product source page for additional details.
Technical Specifications
| Model | Screen surface | Feeding particle size (mm) | Processing capacity (t/h) | electric motor | Weight(kg) | |||
|---|---|---|---|---|---|---|---|---|
| Area (m2) | Inclination angle (°) | Sieve hole size (mm) | Model | Power(kW) | ||||
| YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4905 |
| 2YA1236 | 80~240 | Y160M-4 | 5311 | |||||
| YA1530 | 4.5 | 80~240 | Y160M-4 | 4675 | ||||
| YA1536 | 5.4 | 100~350 | Y160M-4 | 5137 | ||||
| 2YA1536 | 400 | 100~350 | Y160L-4 | 15 | 5624 | |||
| YAH1536 | 30~150 | 160~650 | Y160M-4 | 11 | 5621 | |||
| 2YAH1536 | 30~150; 6~50 | 160~650 | Y160L-4 | 15 | 6045 | |||
| YA1542 | 6.5 | 6~50 | 200 | 110~385 | Y160M-4 | 11 | 5515 | |
| 2YA1542 | 30~150 | 110~385 | Y160L-4 | 15 | 6098 | |||
| YA1548 | 7.2 | 6~50 | 120~420 | Y160L-4 | 5918 | |||
| 2YA1548 | 6~50 | 120~420 | Y160L-4 | 6321 | ||||
| YAH1548 | 7.2 | 30~150 | 400 | 200~780 | Y160L-4 | 6842 | ||
| 2YAH1548 | 7.2 | 30~150 ； 6~50 | 200~780 | Y160L-4 | 7404 | |||
| YA1836 | 6.5 | 30~150 | 200 | 140~220 | Y160M-4 | 11 | 5205 | |
| 2YA1836 | 6.5 | 30~150 | 140~220 | Y160L-4 | 15 | 5946 | ||
| YAH1836 | 6.5 | 30~150 | 400 | 220~910 | Y160M-4 | 11 | 5900 | |
| 2YAH1836 | 6.5 | 30~150； 6~50 | 220~910 | Y160L-4 | 15 | 6353 | ||
| YA1842 | 7.6 | 6 ~150 | 200 | 140~490 | Y160L-4 | 15 | 5829 | |
| 2YA1842 | 7.6 | 6 ~150 | 140~490 | Y160L-4 | 15 | 6437 | ||
| YAH1842 | 7.6 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 6352 | |
| 2YAH1842 | 7.6 | 30~150； 6~50 | 450~800 | Y160L-4 | 15 | 7037 | ||
| YA1848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6289 |
| 2YA1848 | 8.6 | 200 | 150~525 | Y160L-4 | 15 | 6624 | ||
| YAH1848 | 8.6 | 30~150 | 400 | 250~1000 | Y160L-4 | 15 | 7122 | |
| 2YAH1848 | 8.6 | 30~150； 6~50 | 400 | 250~1000 | Y160L-4 | 15 | 7740 | |
| YA2148 | 10 | 6~50 | 200 | 180~630 | Y180M-4 | 18.5 | 9033 | |
| 2YA2148 | 10 | 6~50 | 200 | 180~630 | Y180L-4 | 22 | 10532 | |
| YAH2148 | 10 | 13~200 | 400 | 270~1200 | Y180M-4 | 18.5 | 10430 | |
| 2YAH2148 | 10 | 30~150； 6~50 | 400 | 270~1200 | Y180L-4 | 22 | 11190 | |
| YA2160 | 12.6 | 6~80 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 | |
| 2YA2160 | 12.6 | 6~50 | 200 | 230~800 | Y200L-4 | 22 | 11249 | |
| YAH2160 | 12.6 | 30~150 | 400 | 350~1500 | Y200L-4 | 30 | 12490 | |
| 2YAH2160 | 12.6 | 30~150； 6~50 | 400 | 350~1500 | Y200L-4 | 30 | 13858 | |
| YA2448 | 11.5 | 6~50 | 200 | 200~700 | Y180 M -4 | 18.5 | 9834 | |
| YAH2448 | 11.5 | 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 11830 | |
| 2YAH2448 | 11.5 | 30~150； 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 13012 | |
| YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 12240 | |
| 2YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 13583 | |
| YAH2460 | 14.4 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 13096 | |
| 2YAH2460 | 14.4 | 30~150； 6~50 | 400 | 400~1700 | Y200L-4 | 30 | 14455 | |
Case Study
In a certain concentrate ore dressing plant in Mongolia, the ore composition is simple and the plant took a long time to build. After the crushing equipment was later improved, the screening and ore feeding efficiency was required to be improved. Under the condition of cost control, Huston circular vibrating screen was selected. This vibrating screen can carry out multi-layer screening. At the same time, the plate-type screen box is used to make the screen frame structure stronger and withstand high ore strength, and finally meet the production requirements reasonably and effectively.
