SKU:
XH-GTS
Category: Gold Processing Equipment

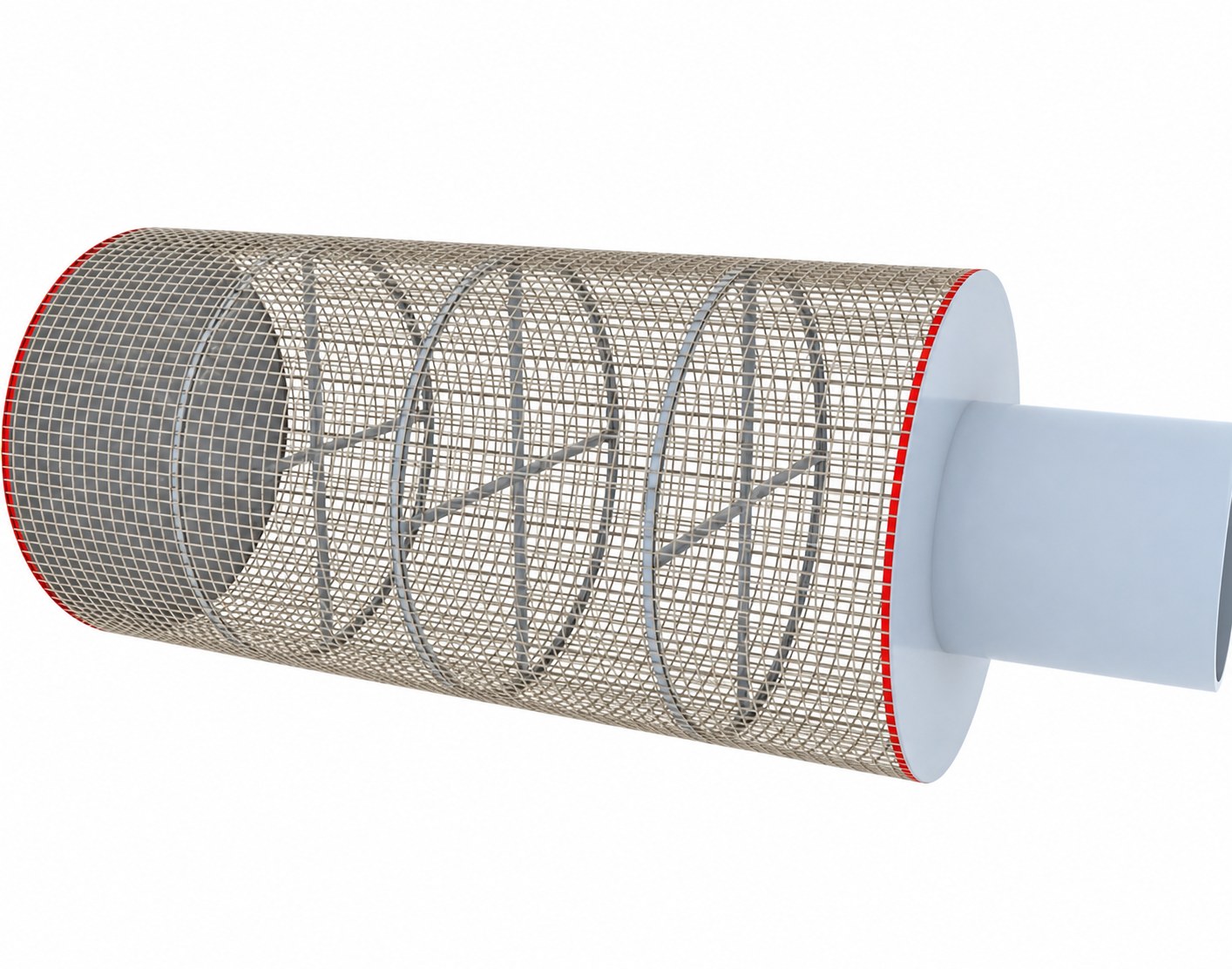

Carbon screen
- Product Introduction: A gold mining equipment that separates activated carbon from slurry.
- Capacity: 100-500mm
- Applications: The carbon screen is used to isolate activated carbon in the leaching tank of the cyanide carbon slurry plant.
- Product Improvements: The innovative process of full peat slurry cyanidation can effectively avoid the problem of carbon blockage and obtain higher gold recovery rate and grade.
Advantages and Features
- Carbon separation screen has no moving parts
- the screen holes are not easy to be blocked
- the structure is simple and easy to operate and maintain
- the cost is low
- the life is long
- used in cyanide carbon slurry plants to separate activated carbon from the slurry with a screen, so that the slurry flows to the next leaching tank, while the activated carbon remains in the leaching tank.

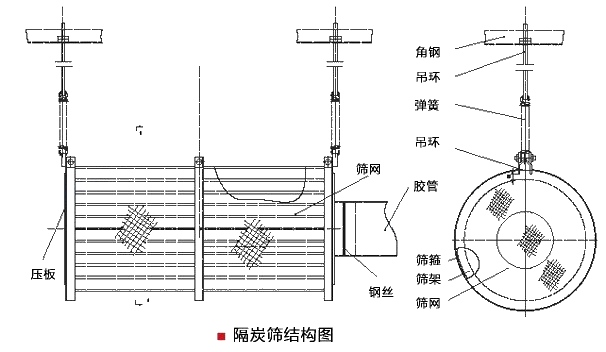

Working Principle
The carbon isolation screen is used in the cyanide carbon slurry plant to separate the activated carbon from the slurry, so that the slurry flows to the next leaching tank, while the activated carbon remains in the leaching tank.
Technical Specifications
| Model | Screen frame diameter (mm) | Screen frame length (mm) | Sieve size (mesh) | Weight(kg) |
|---|---|---|---|---|
| SY100 | 100 | 1000 | 28 | 10 |
| SY125 | 125 | 1000 | 28 | 13 |
| SY200 | 150 | 1000 | 28 | 14 |
| SY250 | 200 | 1000 | 28 | 16 |
| SY300 | 300 | 1000 | 32 | 24 |
| SY500 | 500 | 1000 | 32 | 35 |
Case Study
In a gold mine project in Huston Sudan, the carbon screen plays a very good role in isolating the flow of slurry in the leaching tank and the adsorption of gold by activated carbon, preventing activated carbon from mixing with the slurry and adding extra work. At the same time, the material is strong and durable, and the on-site work effect is very reliable.
