SKU:
XH-YXB
Category: Wear-Resistant Slurry Pumps

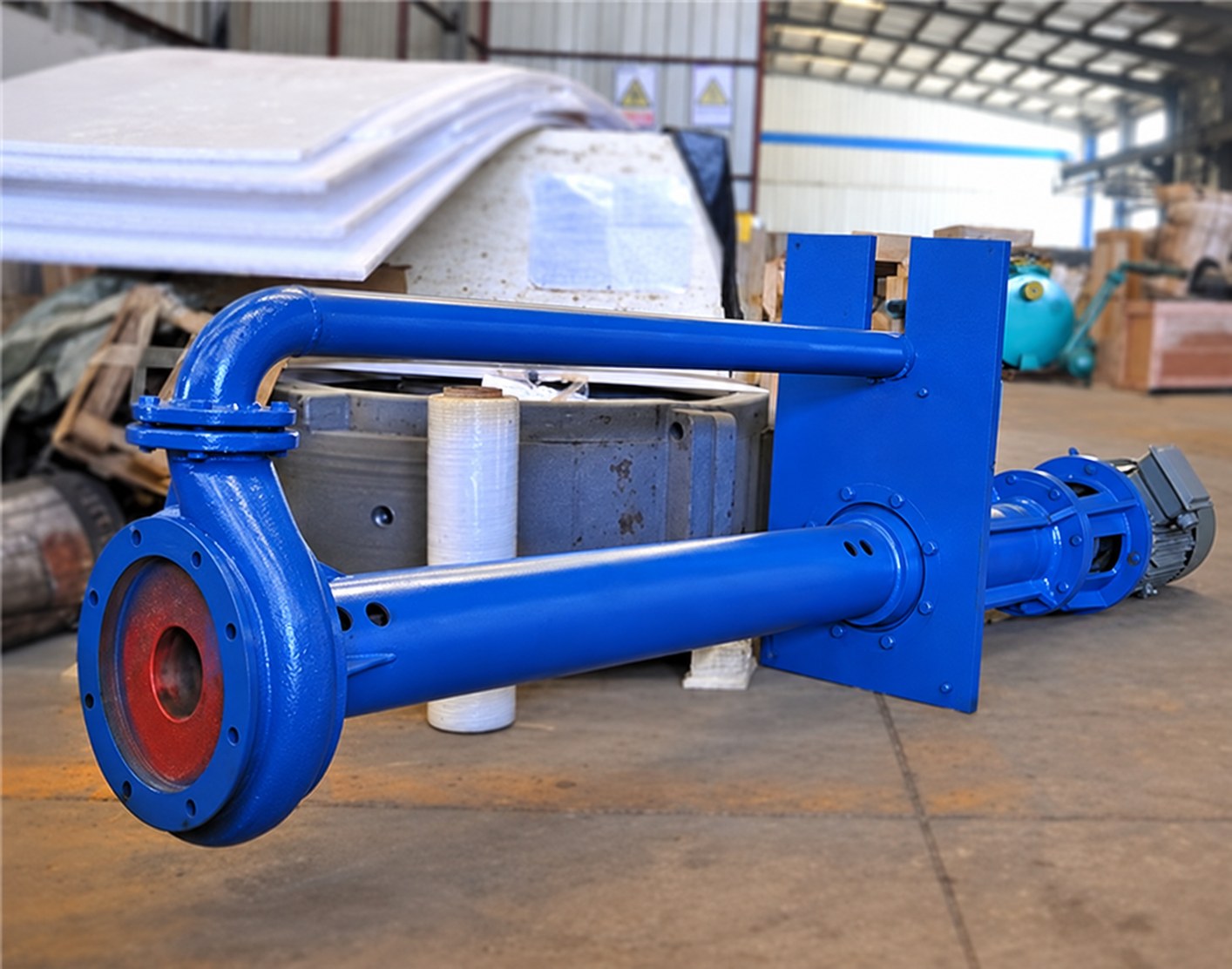

Submersible slurry pump
- Product Introduction: A submersible slurry pump with a super wear-resistant index.
- Capacity: Flow ≤105m3/h
- Applications: Huston submersible pumps are mainly used in metal and non-metal mining, chemical industry, papermaking, agriculture, food and other industries to pump mud, thick liquid and suspended matter in sewage operations.
- Product Improvements: The impeller is molded from super wear-resistant rubber, with a wear-resistant index of 128%.
Advantages and Features
- Huston submersible slurry pump is wear-resistant and corrosion-resistant
- has small vibration and reduces noise
- is strong and durable with long service life
- has good sealing performance and does not leave slurry.

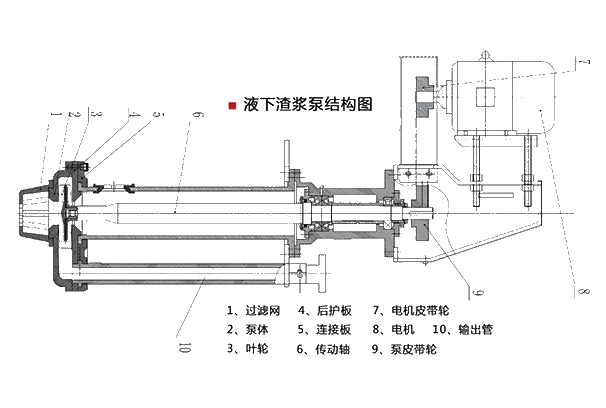

Working Principle
The main components of Huston submersible slurry pump include: impeller, shaft, front and rear guard plates, front and rear pump casings, stuffing box, etc.
Technical Specifications
| Specification | Flow (m3/h) | Lift(m) | Speed(r/min) | Motor power(Kw) | efficiency(%) | Impeller diameter(mm) | Outlet diameter(mm) |
| 40PV-SPR/XH | 17.239-39.6 | 4-26.0 | 1000-2200 | 15 | 40 | 188 | 40 |
| 60QV-SPR/XH | 25.5-105 | 5.5-30.5 | 700-1500 | 30 | 51 | 280 | 65 |
| 100RV-SPR/XH | 64.8-285 | 7.5-36 | 600-1200 | 75 | 62 | 370 | 100 |

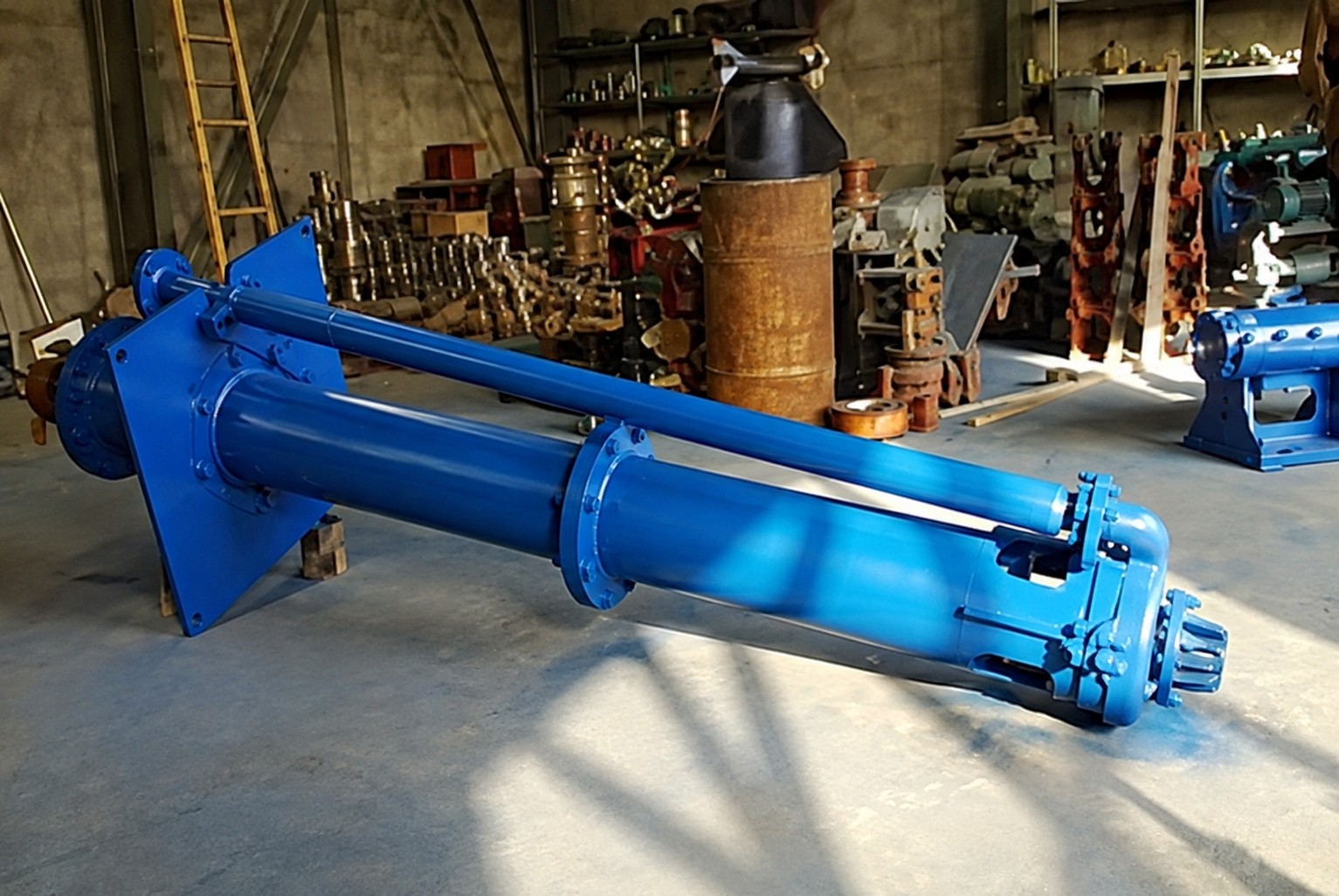

Case Study
In a mineral processing plant in Mali, Africa, the submersible slurry pump used was often wasted due to corrosion due to humid climate. During the plant renovation process, Huston Mining technicians lined the submersible slurry pump with wear-resistant rubber and a packing-type seal, which effectively solved the problem of liquid leakage. The wear-resistant effect was increased by 17% and the service life was extended by one year. It was deeply loved by customers.
