XH-YCH
Category: Gravity Separation Equipment

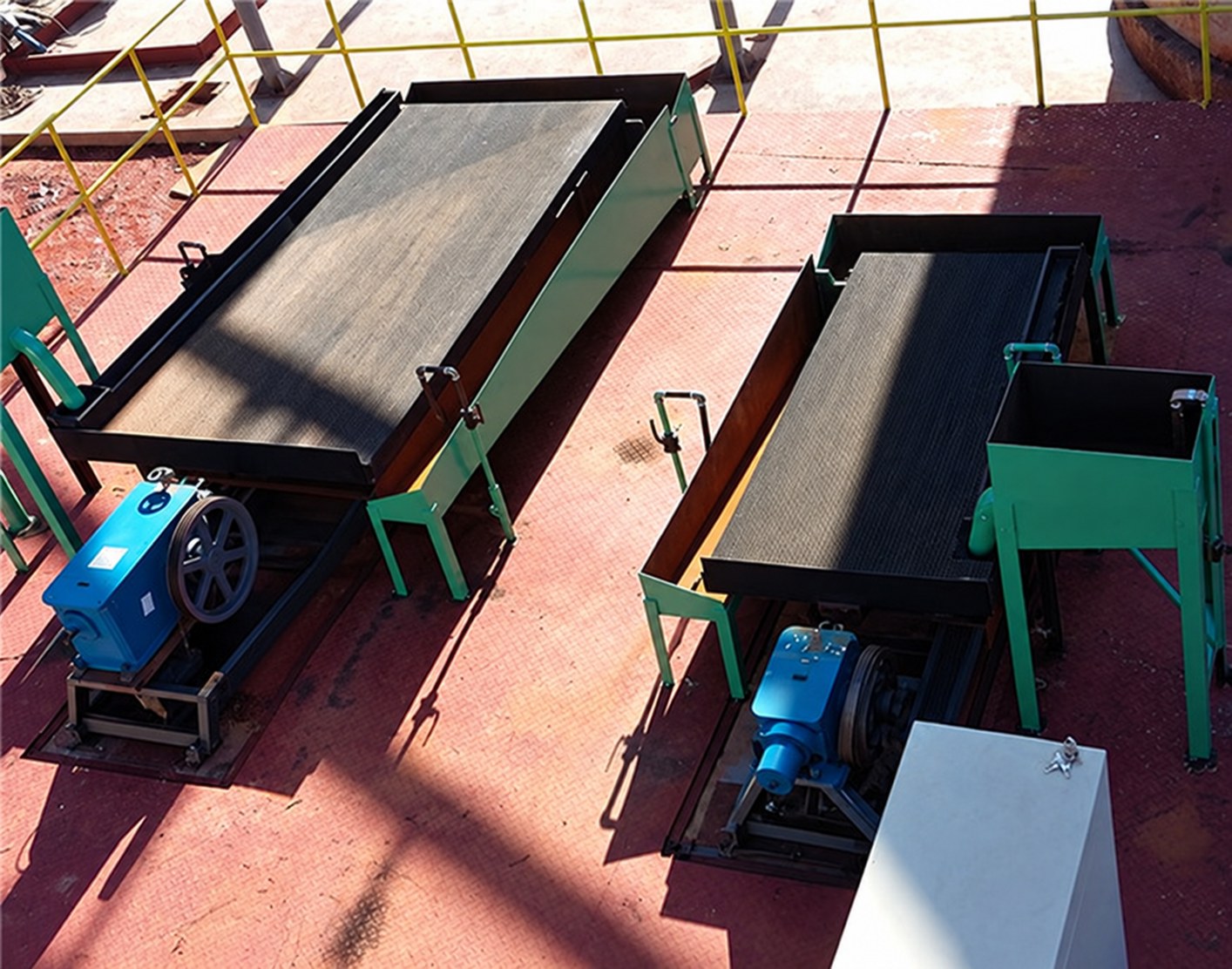

shaker
- Product Introduction: A shaking table equipment that utilizes the asymmetric reciprocating motion of the bed surface to separate light and heavy minerals.
- Capacity: 0.1～1.8 t/h
- Applications: The 6s shaking table equipment can be used for different operations such as roughing, selection, and sweeping, and can select different particle sizes such as coarse sand (2-0.5mm), fine sand (0.5-0.074mm), and slime (-0.074). When processing tungsten, tin and other ores, the effective recovery particle size range of the 6s shaking table is 2-0.22 mm, and can also be used to sort iron and manganese ores.
- Product Improvements: Huston mineral processing shaking table equipment adopts a cam lever bed head. Changing the position of the sliding head on the rocker arm can adjust the stroke, and the stroke frequency is adjusted by a smooth motor pulley.
Advantages and Features
- This shaker has a large lateral slope adjustment range (0 ~ 10°) and the stroke is easy to adjust
- the bed surface is flat, has good corrosion resistance, is durable, not easy to deform, and is easy to repair locally
- the shaker bed surface can also be kept running smoothly when changing the lateral slope and stroke
- the spring is placed in the chassis, and the structure is compact
- the bedside mechanism operates reliably, has few wearable parts, and does not leak oil
- the shaker is reasonably priced, does not consume chemicals, and consumes very little electricity.
Working Principle

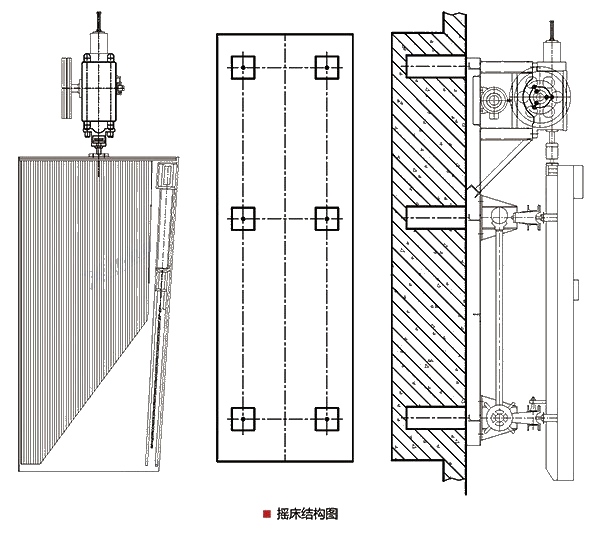

The mineral particles are fed from the feeding trough at the corner of the 6s shaking table bed, and the horizontal flushing water is supplied from the water supply trough. Therefore, the ore particles are stratified according to specific gravity and particle size under the action of gravity, the impact of transverse water flow, and the inertia and friction generated by the reciprocating asymmetrical motion of the bed surface, and move longitudinally along the bed surface and transversely along the inclined bed surface. Ore particles with different specific gravity and particle size gradually flow down in a fan shape along their respective directions of movement, and are discharged from different areas on the concentrate end and tailings side of the shaker, and are finally divided into concentrates, middlings and tailings.
Technical Specifications
| Model | Coarse sand bed surface | Fine sand bed surface | Grooved bed surface |
|---|---|---|---|
| Bed size (mm) | 4436X1825X1536 | ||
| Stroke(mm) | 16~22 | 10~16 | 10~16 |
| Number of strokes (r/min) | 240~290 | 300~320 | 330~340 |
| Water consumption (t/h) | 190 | 80 | 50 |
| Processing capacity (t/h) | 30 | 8 | 8 |
| Feeding particle size (mm) | 2~0.2 | 0.5 ~0.037 | 0.074~0.019 |
| Feed concentration (%) | 20~25 | 15~20 | 15~20 |
| Minimum installation slope (°) | 2°30″ | 1°50″ | 0°45″ |
| Overall dimensions (mm) | 5454X1825X1242 | ||
| Stroke adjustable range (mm) | 8~22 | ||
| Power(kW) | 1.5 | ||
| Weight(kg) | 1012 | ||
Case Study

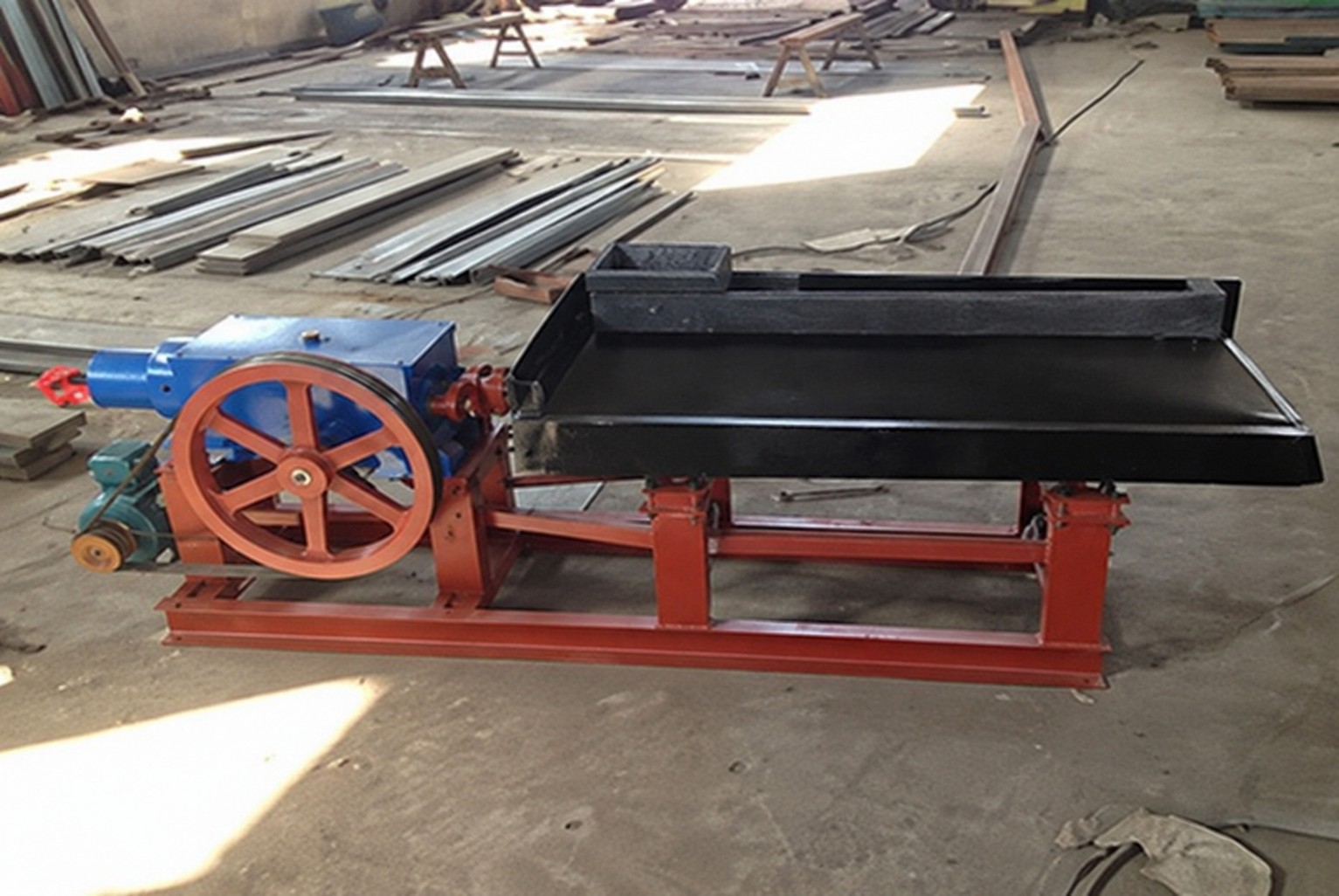

In 2003, a certain gold ore concentrator in Shandong decided to use gravity separation to extract gold because of its high ore grade. It purchased equipment from Huston Shaking Table Manufacturer. Based on the geographical location of the concentrator and the manufacturer’s requirements, Huston provided it with a 6S shaker with a crank connecting rod device and a special lubrication system. During use, the roughing concentrate recovery rate reached 77.78%, with obvious stratification, and the gold purity was 3 percentage points higher than the theoretical value. The customer was very satisfied.
