XH-DZF
Category: Wear-Resistant Valves
Knife gate valve

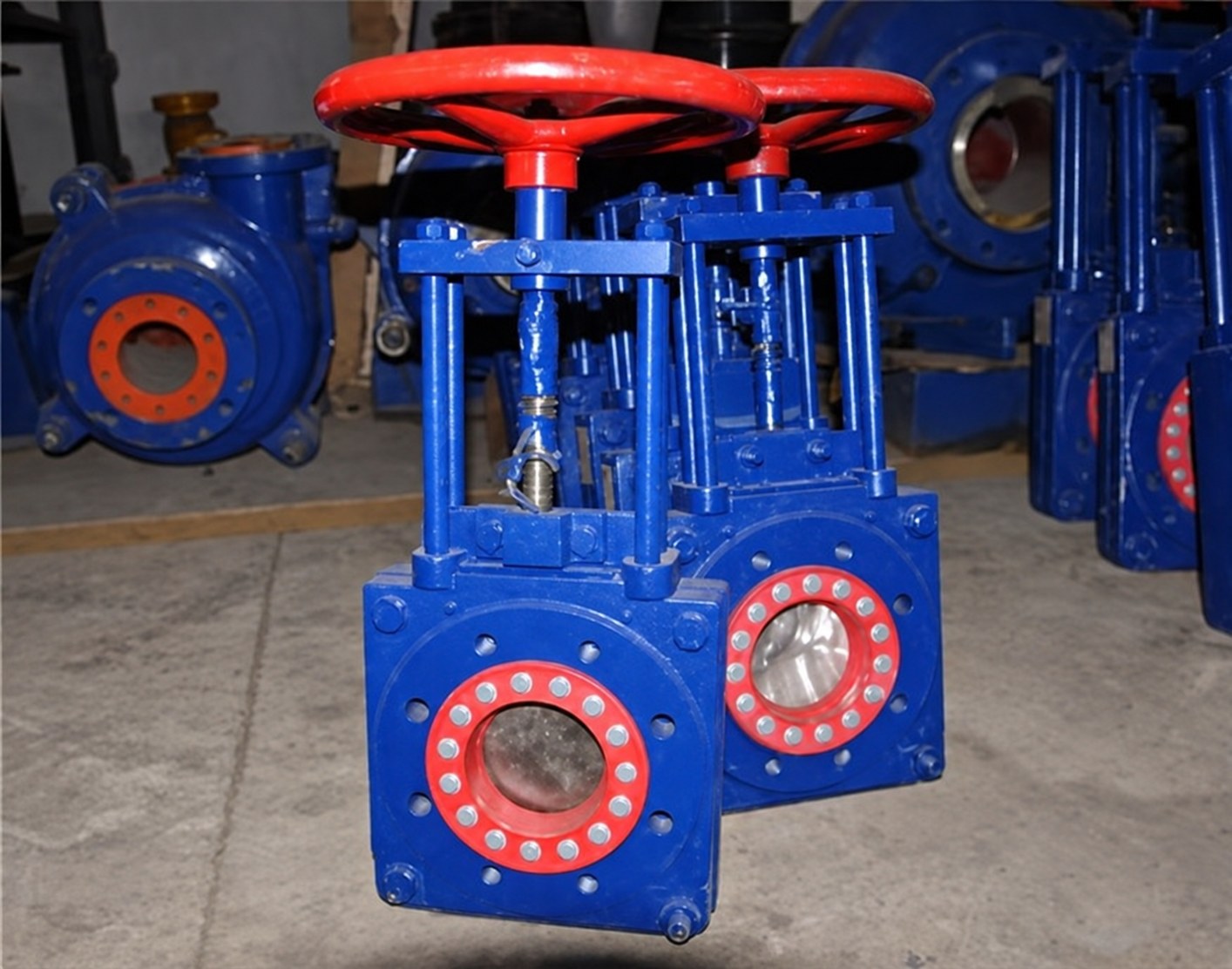

- Product Introduction: A gapless gate valve (also known as knife gate valve) with a valve core made of wear-resistant rubber.
- Capacity: 1.6MPa/cm2
- Applications: Huston knife-type gate valve is a large-opening and large-closing type. It is mainly used for abrasive and corrosive slurry media under working conditions that require full opening and full closing, such as cyclone feeding, double-circuit pipelines, etc.
- Product Improvements: The knife gate valve uses special liquid rubber technology to develop wear-resistant rubber as the valve lining. Its elasticity exceeds 80%, ensuring a tight fit between the gap-free gate valve and the gate plate without leakage.
Advantages and Features
- Huston Knife Gate Valve has a long service life, and its lining adopts wear-resistant rubber developed with unique nano-formula technology, with a wear-resistant index of more than 128%, which can extend the service life 2-4 times compared to other rubbers
- It has strong sealing performance, and the wear-resistant rubber elasticity of the lining is greater than 80%, ensuring that the seal does not leak and is not prone to water hammer impact
- the flow port is not easy to block, because the wear-resistant rubber valve lining has a smooth and neat surface, and the blocking situation is almost zero
- the structure is simple, easy to operate and easy to maintain
- No pressure loss.
Working Principle

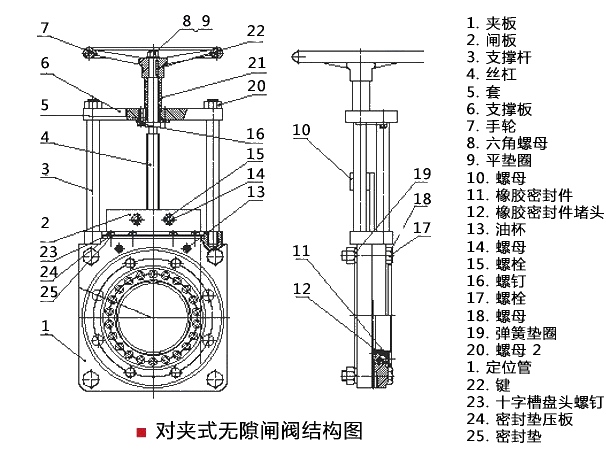

Huston knife gate valve is mainly composed of valve seat, valve lining, gate plate, bracket and driving device. Under the action of assembly pre-tightening force, the two valve seats make the valve linings fit tightly to form a short butt pipe. The valve is closed and the gate is wedged between the covers of the two valve seats to cut off the fluid. In addition, Huston knife gate valves are manual knife gate valves. They can be made into electric knife gate valves and pneumatic knife gate valves according to user needs. They can be operated on site or remotely controlled. The structural length and flange size of electric gapless gate valves and pneumatic gapless gate valves are generally manufactured in accordance with national standards, and can also be made according to user needs.
Technical Specifications
| DN | Pressure endured (Mpa) | Electric device model | Torque (Newton meters) | Motor power(KW) |
|---|---|---|---|---|
| 50 | 1.6 | DZ10 | 100 | 0.25 |
| 65 | 1.6 | DZ10 | 100 | 0.25 |
| 80 | 1.6 | DZ10 | 100 | 0.25 |
| 100 | 1.6 | DZ10 | 200 | 0.37 |
| 125 | 1.6 | DZ10 | 200 | 0.37 |
| DN | A | D | D1 | D2 | n-Φd | B | H | H1 |
|---|---|---|---|---|---|---|---|---|
| 50 | 60 | 165 | 125 | 94 | 4-Φ18 | 180 | 546 | 90 |
| 65 | 60 | 185 | 145 | 112 | 4-Φ18 | 200 | 565 | 100 |
| 80 | 64 | 200 | 160 | 126 | 8-Φ18 | 220 | 580 | 110 |
| 100 | 64 | 220 | 180 | 150 | 8-Φ18 | 240 | 610 | 120 |
| 125 | 70 | 250 | 210 | 178 | 8-Φ18 | 270 | 640 | 135 |
Case Study
Many mineral processing plants in Yunnan and Guangxi have chosen Huston as a knife gate valve manufacturer. It is lined with wear-resistant rubber developed with unique nano-formula technology and is also known as an ultra-thin knife gate valve. The test results of the equipment produced by Huston knife gate valve manufacturer show that the wear index of the valve lining exceeds 128%, the wear-resistant elasticity is higher than 80%, the gate valve and the gate plate are closely combined, no leakage, the service life is 2-4 times longer than other knife gate valves, the flow port clogging rate is almost 0, there is no pressure loss, and it is deeply loved by customers.
