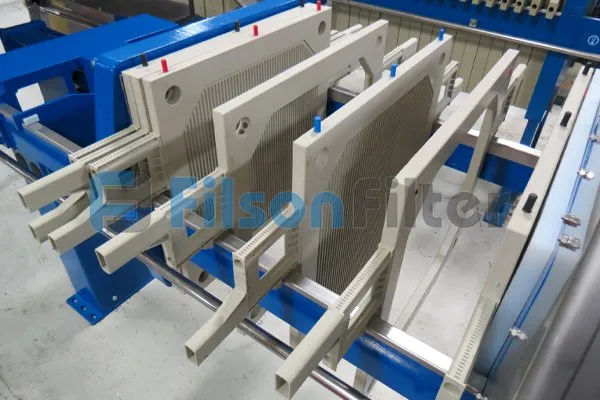

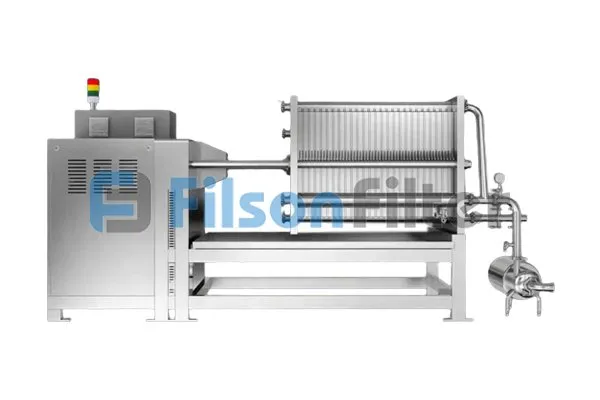

Filson Plate and Frame Filter Press
- Different thicknesses of frames used for a variety of cake thicknesses
- Available for flexibility in the amount of filtered solids
- Selectable plate material realizing multi-function of the device
- Heavy duty hydraulic cylinder for opening and closing of press
- Careful design and manufacturing for leakage free operation
Filson plate and frame filter press is the most fundamental design and the oldest type of filter press. Its body part is mainly composed of filter frame, filter plate and filter cloth. After operation, the solid is separated as the form of filter cake.
Plate material: stainless steel, cast iron, nickel, aluminium, monel, wood, hard rubber, plastic ( polypropylene )
Operating pressure: 0.3 – 0.6 MPa
Frame length of side: 200 – 2000mm

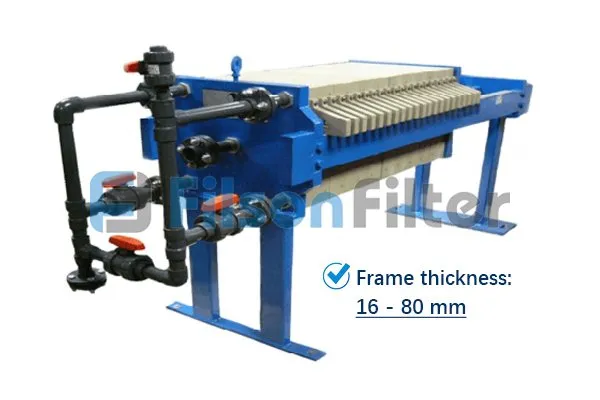

Frame thickness: 16 – 80 mm
Filtration surface: 0.5 m2 – 1200 m2
Plate size: 250 x 250mm to 1500 x 2000mm
Plate shape: square, rectangular
Note: specifications listed above are for reference only, more details to be known by consulting Filson.
